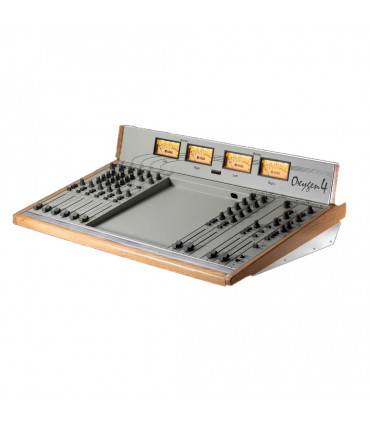

Console OXYGEN 4 VMH Broadcast On Air

OXYGEN 4 VMH

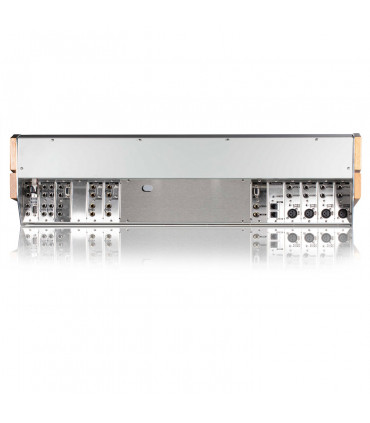

OXYGEN 4 console is available in three frame sizes: the frame 10, which can contain 10 overall modules, the frame 20 and the frame 30. OXYGEN 4’s wide range of functions provides the most immediate and complete control of the emission. All relevant functions are built-in, such as TalkBack two-way communication circuit, the OnAir lamp control, Studio - Control Room speakers cut-off, phantom microphone powering… OXYGEN 4 features 2 output buses (Master and Sub), 2 recording outputs (assignable Mst/Sub) and a versatile Monitor section All input / output audio connections are balanced on 1/4” jacks Four Vu / Peak meters come with the equipment.

€5,415.00 No tax €5,700.00
-5%
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
OXYGEN 4 VMH
Description

OXYGEN 4 VMH

Main Features

  • Rock Solid Design
  • Custom configuration
  • Wide range of functions and features
  • Inox steel + aluminium frame with wood finishing touch
  • Up to four back lit vu-meters showing master, PFL and tuner signals. Built-in peak meter
  • Modular structure
  • Available in 18 and 26 module versions
  • Integrated talk back microphone
  • External power supply including 2 relays for on air lamps control

Meters

  • 2 Vu/Peak meter pairs
  • 1 pair preset to Master output, 1 user assignable
  • High resolution scale: 20 LED for each meter
  • Vu/Peak visualization jumper selectable
  • Sensibility ranging from – 25 dB to + 5 dB

Mono Module

  •  Micro and mono Line switchable inputs (balanced)
  • Insert function on microphone input
  • Trimmer for Micro level fine adjustment
  • Gain control
  • Phantom power supply
  • Three band parametric equalizer (optional)
  • Master & Sub output assignment
  • PFL function
  • Monitor speaker muting control
  • 2 relays activation

Stereo Module

  • Two balanced stereo inputs
  • Input B configurable for Line or Phono sources
  • Three band equalizer (optional)
  • Start / Stop command interface (optional)
  • Master e/o Sub output assignment
  • PFL function
  • Gain Control

Telephone Module

  • Built-in analog telephone hybrid
  • Automatic Line compensation
  • Send & Receive level controls
  • Trimmer for fine adjustment of Receive level
  • Master & Sub output assignment
  • Ring LED for incoming calls
  • Private/ PFL function for ‘off-air’ communications
  • Hook key for line hooking
  • Socket for external telephone set

Telco Module

  •  Balanced Send output and Receive input
  • Send & Receive level controls
  • Remote control capabilities of external hybrid (e.g. Boxtel and Macrotel series by AxelTech)
  • Master & Sub output assignment
  • Ring LED for incoming calls
  • Private/ PFL function for ‘off-air’ communications
  • Hook key for line hooking

Master-Sub Module

  • Balanced Master output (Mono/Stereo switchable)
  • Balanced Sub output (Mono/Stereo switchable)
  • Sub output fader
  • PFL function applied to Sub signal
  • Sub output assignable to the Master output
  • Two balanced Rec outputs (Mst/Sub switchable)
  • Rec output independent level controls

Monitor Module

  • Studio + Ctrl Room outputs (separated for headph / spk)
  • Independent control sections for Studio and Ctrl Room
  • Auxiliary balanced Tuner input
  • Tuner input level control
  • Talk Back to Studio capability
  • Built-in Talk Back microphone
  • Selectable source for 2nd Meter couple

Options to add avaible:

  • OX4-B-NSL Slider stereo Alps  N 90° series with knob
  • OX4-NSL Slider stereo Alps  N 90° series with knob
  • OX4-ST-START Latched Start/Stop control from slider for stereo module (no to be added to VCAOptions)
  • OX4-ST-SSIR Momentary, relay-based Start/Stop control from slider for Stereo module (no to be added to
  • VCA Options)
  • OX4-ST-2SSIO Momentary, opto duplicated Start/Stop control (A,B) from slider for stereo module - (no to be
  • added to VCA Options)
  • OX4-MONO-VCA Slider K + VCA control for input module (Mono, Telco) with knob
  • OX4-ST-VCA Slider K + VCA control for stereo input module  with knob
  • OX4-SP-ST-VCA Slider K + VCA control for stereo input module  with knob spare part

MODULE to add avaible:

  • OX4-B-ST-L/L-TONI Stereo black(Line/Line) module without tone controls
  • OX4-B-MONO-TONI Mono black(Micro/Line) module without tone controls
  • OX4-B-MONO Mono black (Micro/Line) module without tone controls
  • OX4-B-ST-L/L Stereo (Line/Line) module without tone controls
  • OX4-B-ST-P/L Stereo black (Phono/Line) module without tone controls
  • OX4-B-TELCO Telco black module (interface for ex ternal telephone hybrids)
  • OX4-B-TELEF Telephone black module with integrated hybrid
  • OX4-B-COV Black cover module
  • OX4-COV Cover module
  • OX4-SCRIPT-8 Script Tray module 8 units - 304 mm (only for VMH frame)
  • OX4-SCRIPT Script Tray 10 units - 380 mm (only for 30ch frame)
  • OX4-ST-L/L Stereo (Line/Line) module without tone controls
  • OX4-MONO Mono (Micro/Line) module without tone controls
  • OX4-TELCO Telco module (interface for ex ternal telephone hybrids)
  • OX4-ST-L/L-TONI Stereo (Line/Line) module with tone controls
  • OX4-MONO-TONI Mono (Micro/Line) module with tone controls
  • OX4-ST-P/L Stereo (Phono/Line) module without tone controls
  • OX4-TELEF Telephone module with integrated hybrid
