Console OXYGEN 3-ST Broadcast On Air

OXYGEN 3-ST

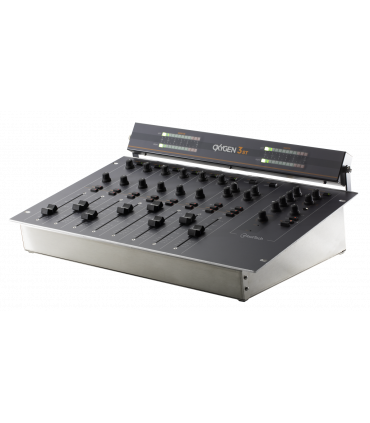

The OXYGEN 3 ST features 8 channels with A/B input selection, 3 microphone inputs, 9 stereo inputs and 2 built-in telephone hybrids. The console integrates all the specific functions required in any radio studios, such as 2 telephone hybrids with conference capabilities, control of On Air studio lamp, CUT-OFF for loudspeaker and Talk-Over facility.

€1,852.50 No tax €1,950.00
-5%
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
OXYGEN 3-ST
Description

OXYGEN 3-ST

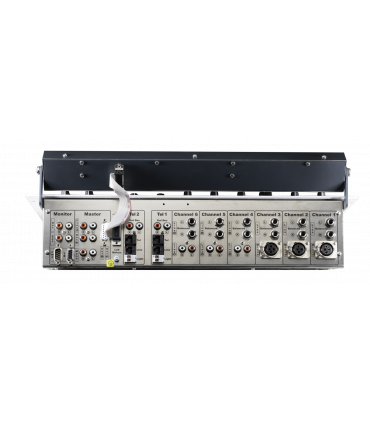

OXYGEN 3 ST console provides balanced inputs and balanced outputs. OXYGEN 3 ST features electronically balanced LINE inputs on Jack 1/4” female connectors.

The frame is inox steel & aluminium made, with wood finishing side panels available as an option. Electronic components have been selected from the best on the market, switchers, faders and potentiometers are by ALPS. 2 large LED meters with memory peak fine control of Master and Monitor signals. The external switching power supply assures maximum reliability and easy maintenance.

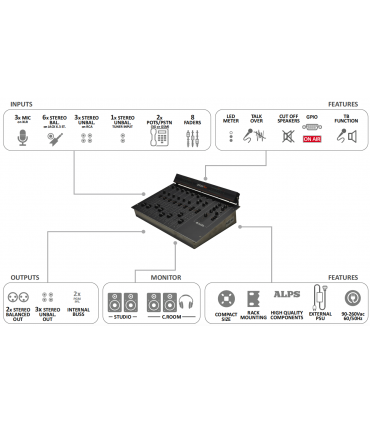

Main Features

  • Compact and rock-solid design
  • 3 microphone inputs
  • 6 balanced stereo inputs
  • 3 unbalanced stereo inputs
  • 2 built-in telephone hybrids with conference (POTS)
  • Balanced output
  • LED meter with memory peak (PFL and Master)
  • Easy to operate

Monitor Section

Unbalanced stereo output for loudspeakers, with CUT-OFF, for monitoring of PFL, MASTER and EXTERNAL source. 2 headphones output. Talkback output switched between Master / Talkback (from Mic1).

Master Section

2 balanced Master output with level and balance controls (adapter SUDB15-XLR available as option).

1 unbalanced Master output with level control (Out 3)

2 unbalanced Master output mono with fixed level. Talkover function to automatically adjust/attenuate the music level on master output when presenter talk on mic 1.

Power Supply Unit

External switching PSU 90-260 VAC 50/60Hrz.

OPTIONS AVAIBLE:

  • OX3-NSL Alp Slider  N 90° series with knob
  • OX3-NCUT Alp Slider N 90° series with switch for monitor loudspeaker cut (off for Micro channel 2 or 3) with knob
  • OX3-ADPT Sub D / 4 XLR adapter for master balanced outputs
  • OX3-WOOD Wood frame for Ox ygen 3
