Zoom LIVETRAK-8 Mixer Recorder
Zoom LIVETRAK-8 Mixer Recorder
Zoom LiveTrak L-8 - Battery-powered podcast recorder, digital mixer and recorder, music mixer, phone jack, audio pad, 4 headphone outputs, 12-in/4-out audio interface.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

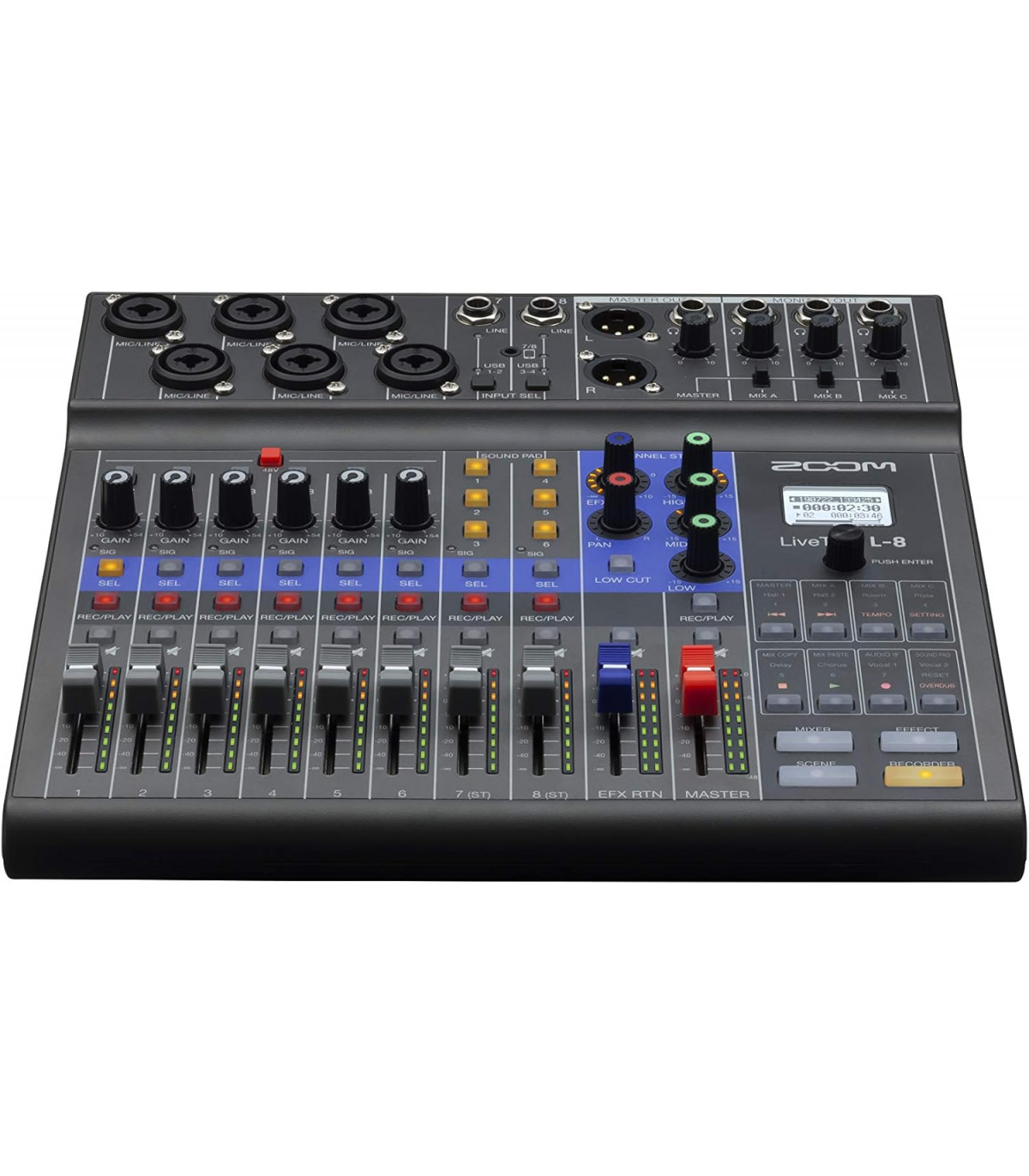

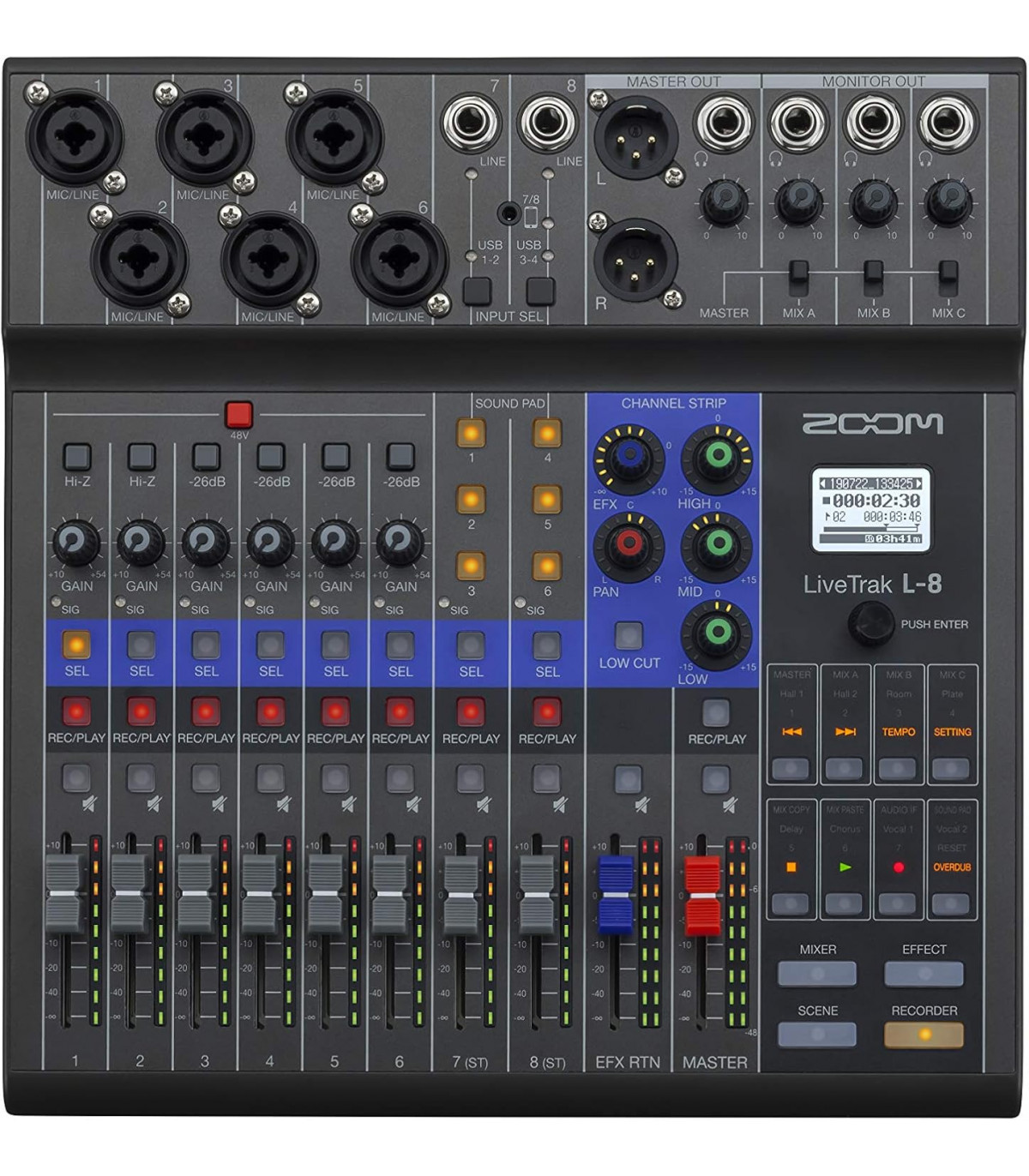

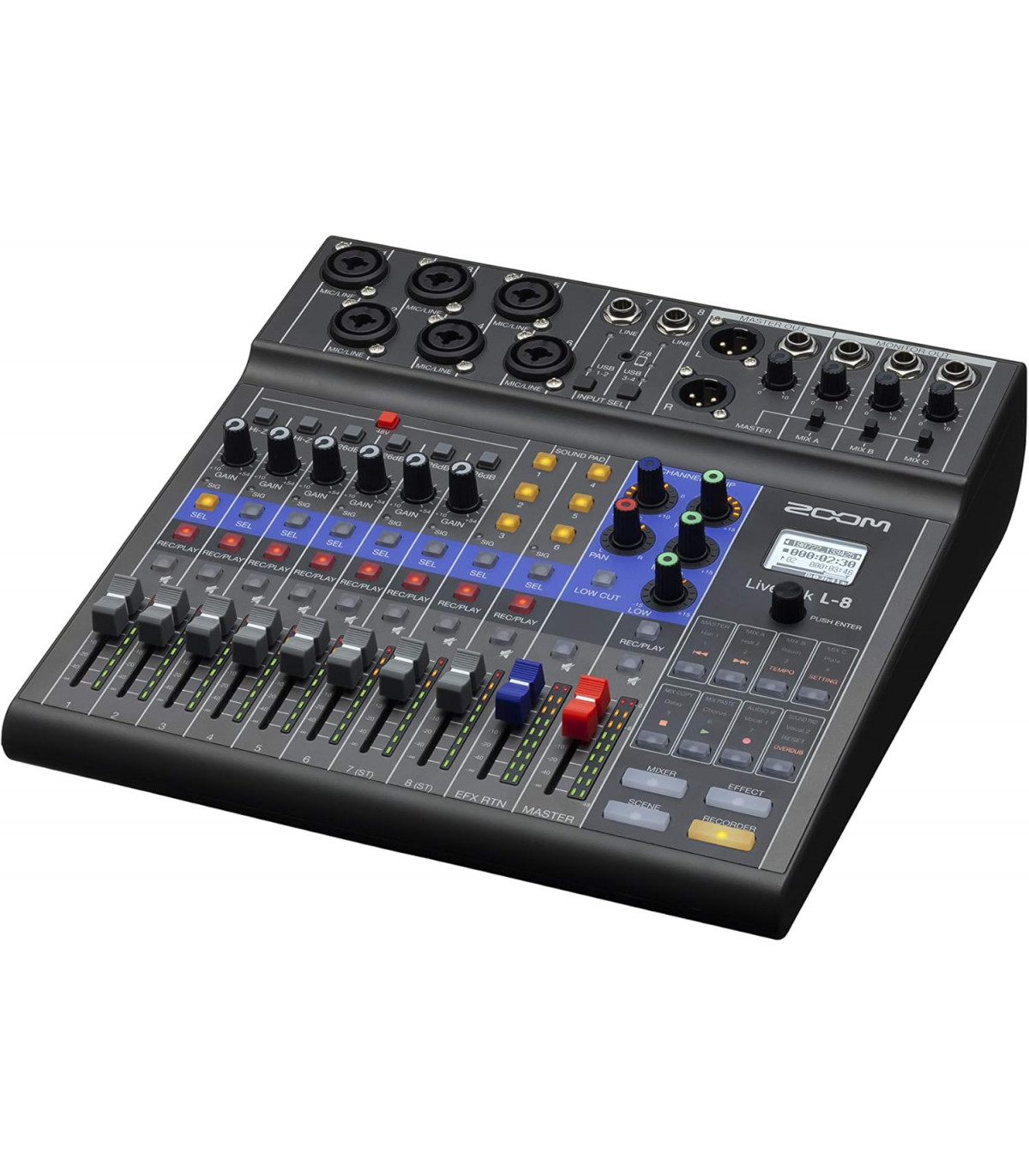

LiveTrak L-8
Features
8-channel mixer (6 combo, plus 2 TS)
12-track simultaneous recording, 10-track playback
Mix-Minus function to prevent audio feedback on phone calls
TRRS connection and included TRRS cable for phone connectivity
6 assignable Sound Pads with 13 preset sounds
4 headphone outputs with three customizable monitor mixes, plus a main mix
3-band EQ and low-cut function
7 scene memories to save mix settings
12-in/4-out USB audio interface
Class-compliant mode (for iOS compatibility)

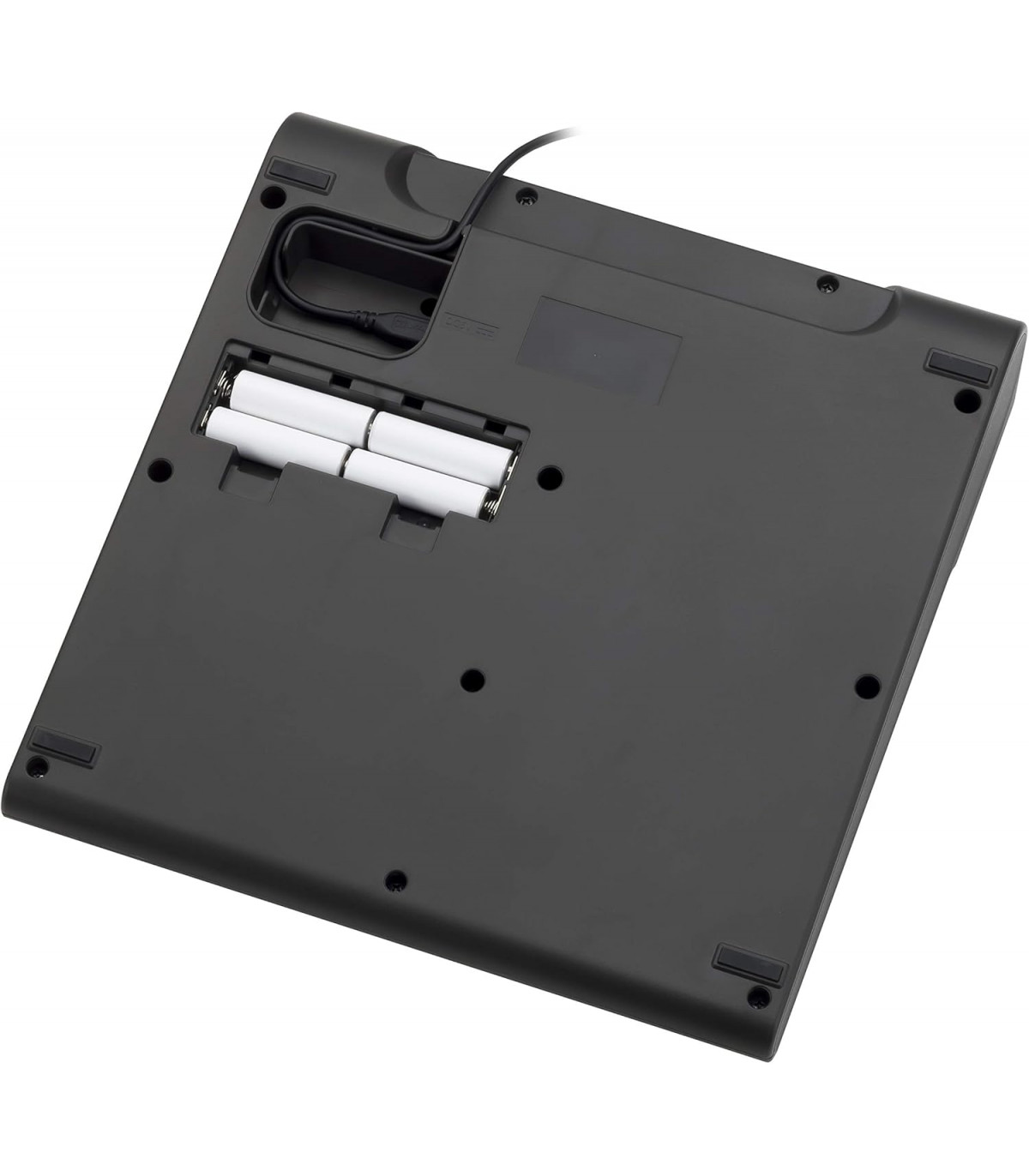

Battery operation with four AA batteries or a USB power supply
Records up to 24-bit/96 kHz, and records up to 48 kHz to a computer and SD card simultaneously
INPUTS
MICROPHONE/LINE
Type: XLR/TRS combo jack (XLR: 2 HOT, TRS: HOT TIP)
Input gain: +10 – +54 dB/–3 – +41 dB (when Hi-Z ON)
Input impedance: XLR: 3 kΩ
Input impedance: TRS: 3 kΩ/1 MΩ (when Hi-Z ON)
Maximum input level: –2 dBu when –26 dB is muted (at 0 dBFS)
Maximum input level: +24 dBu when –26 dB is muted (at 0 dBFS)
Phantom power: +48 V
LINE
Type: TS phone jack
Input impedance: 10 kΩ
Maximum input level: +3 dBu
Smartphone connection jack: Type: TRRS mini jack (4 contacts/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)
Input impedance: 10 kΩ
Maximum input level: +3 dBu
OUTPUT
MAESTRO OUT: Type: XLR jacks (balanced)
Maximum output level: +14.5 dBu
Output impedance: 100 Ω
MAESTRO OUT (PHONE): Type: Standard stereo phone jack
Maximum output level: 10 mW + 10 mW (60 Ω load)
Output impedance: 10 Ω
MONITORING OUT (PHONE)
Type: Standard stereo phone jack
Maximum output level: 10 mW + 10 mW (60 Ω load)
Output impedance: 10 Ω
CHANNEL STRIP
LOW CUT: 75 Hz, 12 dB/OCT
Equalizer: HIGH: 10 kHz, ±15 dB, shelving
MID: 2.5 kHz, ±15 dB, Peak
LOW: 100 Hz, ±15 dB, shelving
Level meter: 9 segments
Send effects: 8 types
RECORDER
Maximum simultaneous recording tracks: 12 at 44.1/48/96 kHz
Maximum simultaneous playback tracks: 10
Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
Recording media: SDHC-compatible cards from 4 GB to 32 GB (Class 10 or higher)
SDXC-compatible cards from 64 GB to 1 TB (Class 10 or higher)
AUDIO INTERFACE
44.1/48 kHz: Recording: 12 channels
Playback: 4 channels
Data Depth: 24 bit
Interface: USB 2.0
