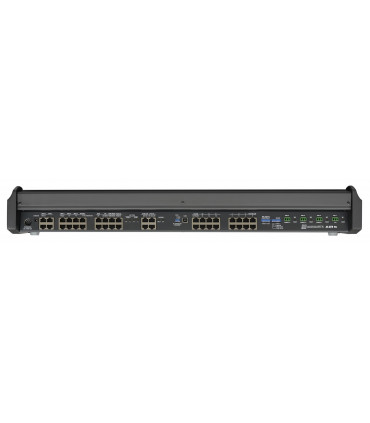

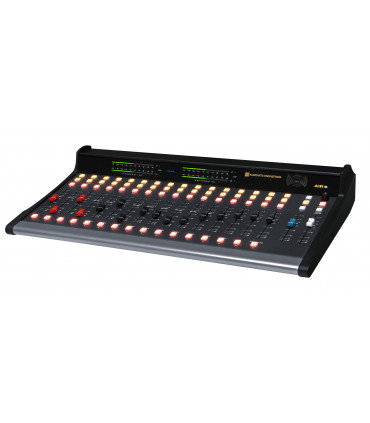

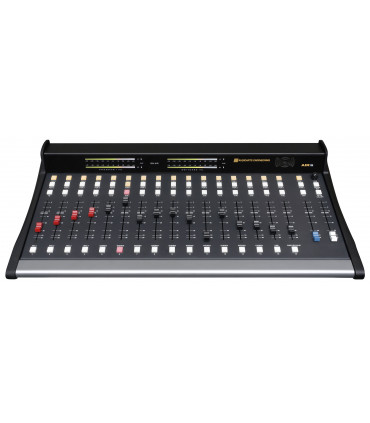

Console WHEATSTONE AUDIOARTS AIR-5 Broadcast On Air
WHEATSTONE AUDIOARTS AIR-5
AIR-5 builds on the AIR series by Audioarts with USB input/output connectivity.
Play audio directly from the PC or output audio to PC recording software as well as play cuts from MP3 players.
The AIR-5 has four microphone preamps built in, which allows the use of a host microphone and three guest microphones without the use of any external mic preamps. It gives you 16 input faders, plus auto mix-minus for call-ins, two program busses, built-in CUE speaker and CR, and headphone and studio monitoring control.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
WHEATSTONE AUDIOARTS AIR-5
With basic features like cue, talkback, and mix-minus included, it’s perfect for smaller stations looking to upgrade as well as for larger facilities in need of an auxiliary studio or newsroom console. Add USB connectivity for PC news, production workstations or streaming audio, and the AIR-5 is perfect for news and internet broadcasts.
- 16 Input Faders - 4 Microphone Input Channels
- 10 Stereo Input Channels
- 1 Phone channel with Mix-Minus feed
- 1 USB Input Channel
- 2 Stereo Program Busses, Control Room, Headphone & Studio Monitor feeds, Selectable Control Room Monitor muting logic
- 2 Large VU meter pairs with peak indicators
- Internal Cue Speaker and On-Air tally display
- RJ-45 connectors for low cost wiring
- Shipping Dimensions & Weight: 33.00 in. (83.82 cm) Wide x 20.00 in. (50.80 cm) Depth x 10.00 in. (25.40 cm) High. 24 lbs (10.89 Kg)
