Mirage 4 Dig Evo FM-AEV AUDIO BROADCAST PROCESSOR
MIRAGE 4 DIG EVO FM-AEV AUDIO PROCESSOR

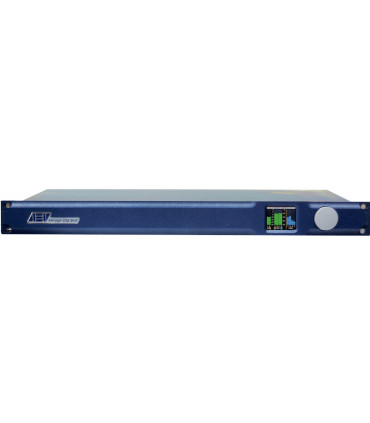

MIRAGE DIG EVO the new Digital Audio Processor AEV
The Mirage Dig Evolution is a fully digital audio processor, based on DSPMirage Dig Evo technology is a complete audio signal processing processor for AM, FM and TV broadcasts.
Digital audio inputs/outputs l AES/EBU and Optics
Balanced analog audio inputs/outputs
AES/EBU standard, 24 bit resolution low structural latency of the signal ( 3 ms )
Four-band audio processing and compression
Input switching with selectable backup function, and more.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

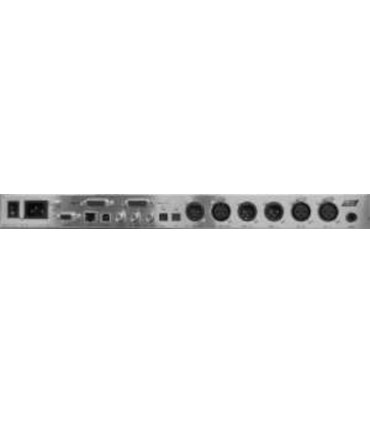

Mirage 4 Dig Evo FM-AEV
