The Elite Studio aims to be a high-class radio station: it includes a guest room, an On-Air studio and a production or backup On-Air studio. Your guests can be received at a comfortable round table and interact via LCD monitors made available to them.
Both studios are networked, so the production studio can be used as an On-Air backup via a silence detector and step switch. The all-in-one automation workstation for 24 / 24 programs includes all modules needed to operate one or more radios: Playout, streaming, commercial scheduling, recording, editing and post-production.
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
AKG K240: Studio stereo headphones, semi-open, 55 ohms, 25000 Hz - 15 Hz, max. input level: 200 mW.
AKG P220: Studio cardioid condenser microphone, cardioid condenser element, spider shock mount, low-frequency roll-off, 20dB pad.
ALCATEL TEMPORIS 180: Black telephone set with incoming call indicator light, Last number redial, Wall mountable, Message waiting indicator, Earpiece volume adjustable: 5 levels.
APART PR1000 R: 19" professional AM / FM RDS tuner controllable via RS232 or infrared. FM Tuning Range: 87.5 - 108 MHz, 522 - 1611 kHz Presets: 40, 230 VAC / 50 Hz, 1U Rack, 230 VAC / 50 Hz
Chair: For Broadcast desk, technicians and/or guests.

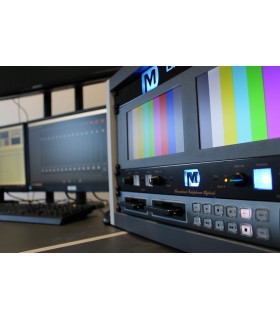

DM 8TH II GSM: Hybrid phone, 2 lines with 2 integrated GSM modules, high quality audio with balanced IN/OUT, ADJ SEND and RECIEVE level
TK MIC ARM: Mic Arm Table or adjustable
DM AO AIR LIGHT: Professional ON AIR light for broadcast facilities. Laser cut polycarbonate graphic panel. RJ45 connection, operating voltage and output 12 Vdc. Current 330 mA. Input voltage 100-240Vac. Product dimensions: W 38,3cm D 4,2 cm H 13,5 cm 1 Kg.
DM VIBE 6FM: 6 bands audio processor with integrated RDS encoder and stereo generator. Graphic display, incremental encoder. Stereo separation 60dB 30-15 KHz, RDS 25 PS, 25 Radiotext (64 characters), 24 AF lists. Inputs: AES / EBU, SCA, analogue to balanced XLR outputs, L&R to XLR

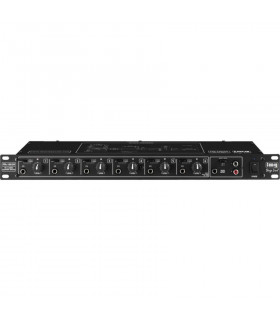

IMG-PPA 100SW: Headphone Distributor 6 independent outputs with level control, Rack 1U.
Acer LED Monitor 23.6 ": TN Full HD 1920x1080 Display, 5 ms, 1000: 1, 300 cd / m2, DVI port I / O. VGA DVI-D HDMI

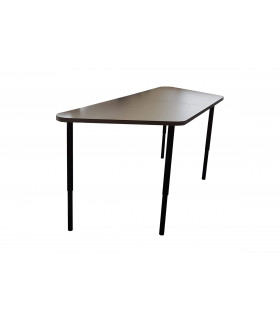

Broadcast table mod. TECH: with desktop anti-scratch surface, side-rack 15U, cylindrical legs, a top rack (8 or 4 U), plus additional guest desk with legs and place for hdp distributor
PRESONUS ERIS 4.5: Pair of active studio monitors, LF driver: Kevlar 4.5" (114 mm), HF driver: 1" (25 mm) silk dome, Frequency response: 70 Hz - 20 kHz, Crossover frequency: 2.8 kHz, LF amplifier Power: 25 W per speaker, Peak SPL (at 1 meter): 100 dB, Input impedance: 10 kOhm
Prewiring ON AIR STUDIO including: cables, connectors, interconnection cables (balanced audio cable 100 mt, cable 100 MPX, Lan cable 100 mt) and factory test.
STUDER 1500-12F: 12 fader console including Studer NANO SCORE DSP and I/O engine, 100 mm faders. Full channel processing incl. four-band EQ, compressor, limiter, expander, gate. OLED in fader strip and center module Inputs: 16 Mic / Line, 4 stereo AES.
Playback system incl. workstation, library and import, playlist, adv. management, runtime planning, audio editing, instant player and recording. PC 4U RK - Win 64 bit i5 8 GB RAM HD SO 250 GB 2X2 TB HD. Digital Audio Card AES / EBU 4 XLR OUT 4 IN with XLR cable
