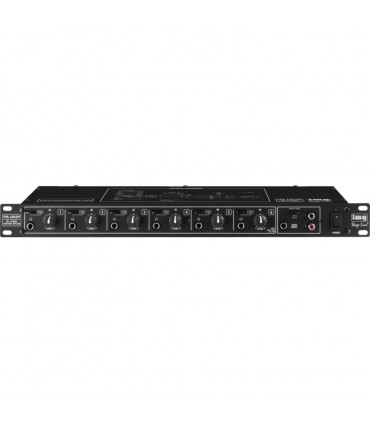

IMG PPA-100/SW AMPLIFIER
IMG AMPLIFIER PPA-100/SW
PPA 100SW is a stereo headphone amplifier with 6 separate headphone amplifiers each with a level controller and signal/clip LED and main/solo switching.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
IMG AMPLIFIER PPA-100/SW
FEATURES
For each amplifier one input (solo), switchable to common main input (main)
Main input with low/high switch to adapt input signal
Inputs: Solo (stereo) 6xjack 6.3mm, Main (stereo 2xjack 6.3mm, 2xRCA L/R
Outputs: headphones (stereo) 6xjack 6.3mm
STAGE LINE PPA-100/SW TECHNICAL SPECIFICATIONS
Inputs
Solo 250 mV/50 kOhm
Main low 250 mV/50 kOhm
Main high 2.2 V/60 kOhm
Outputs (for each headphone) 2x16 mW/8 Ohm - 2x45 mW/32 Ohm - 2x75 mW/600 Ohm
Bandwidth 5-30000 Hz
S/R ratio > 60 dB
Channel separation 50 dB
Distortion factor < 0.02 %
Allowable operating temp. 0-40°C
Power supply 230 V/50 Hz/11 VA
Dimensions 482 x 44 x 185 mm, 1U
Weight 2.3 kg
