PACKAGE ON-AIR STUDIO SMART

STUDIO SMART PACKAGE

Studio Smart is a complete redundant solution, both on air and in production, that can also be used as a backup studio. An essential production studio, suitable for commercial publishing, music recording, programming, etc.

€17,922.83 No tax €18,866.14
-5%
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
PKG-ONS01SMA-21k
Description

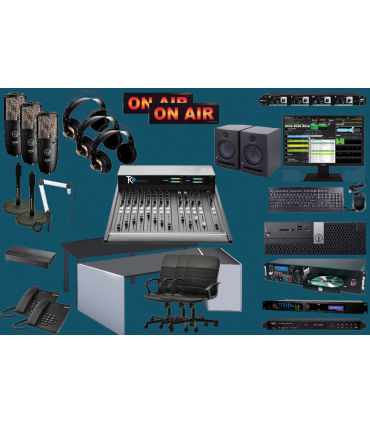

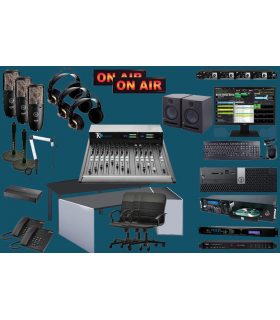

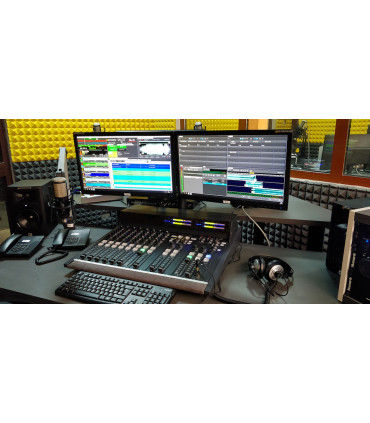

The idea of Smart Studio is to provide a studio solution that is both on air and in production. Both studios are networked, so the production studio can be used as an over-the-air backup via a mute detector and pass-through switch. The all-in-one automation station for 24 / 24 programs includes all the modules needed to operate one or more radios: playout, broadcast, business planning, recording, editing and post-production.

All equipment is of the highest quality, manufactured by the best brands in the broadcasting market. A CD player with USB and MP3 is included. A durable, scratch-resistant desk with 19" rack cabinets built to house all your equipment, ideal for 24-hour, round-the-clock streaming use. Includes pre-assembly service, cables, connections and one year of remote support. is available to you for installation and training.

COMPONENTS

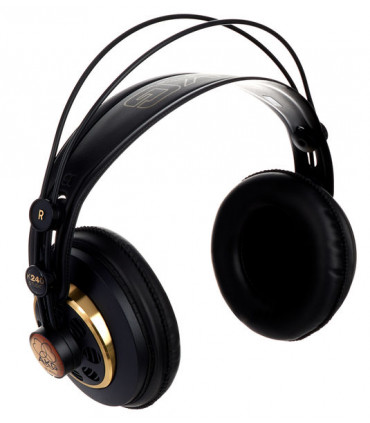

AKG K240: Studio stereo headphones, semi-open, 55 ohms, 25000 Hz - 15 Hz, max. input level: 200 mW

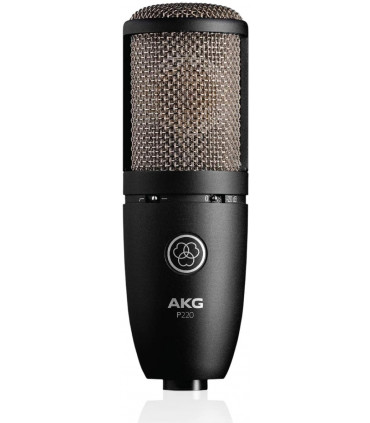

AKG P220: Studio microphone, cardioid condenser element, spider damper, low-frequency roll-off, 20dB pad

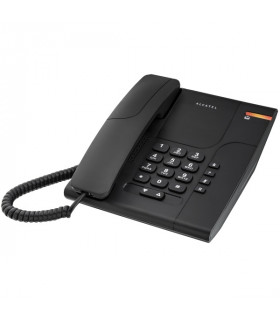

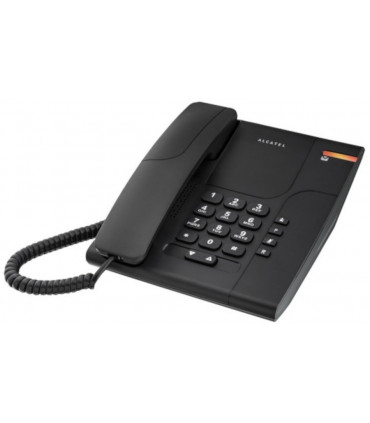

ALCATEL TEMPORIS 180: Black phone with incoming call indicator light, last number redial, wall mount, message waiting indicator, adjustable headset volume: 5 levels.

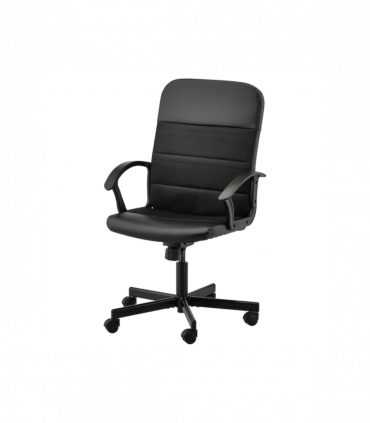

Chair for broadcast station, technicians and/or guests.

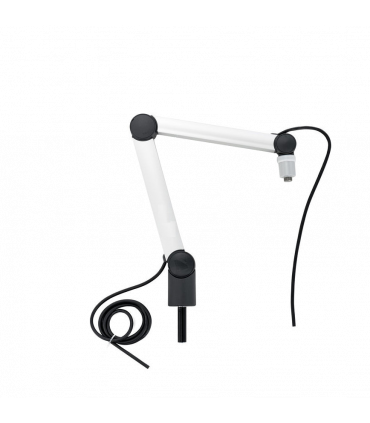

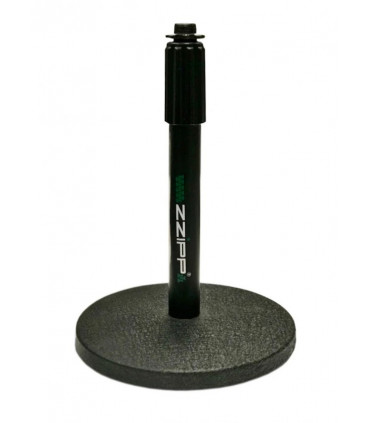

 Desktop or adjustable microphone stand

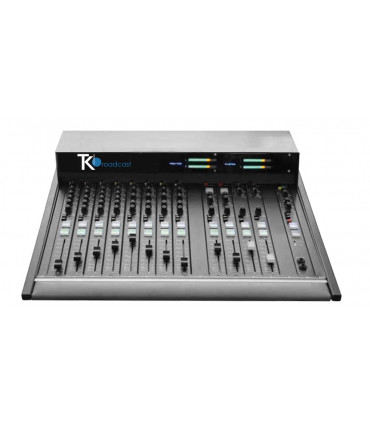

DM-M16: Broadcast mixer with: 8 IN, 6 MIC / LINE, 2 HIBRYD, 1 USB, 1 BLUETOOTH. Digital display with clock and timer. 6 OUT. Replicate. External power supply.

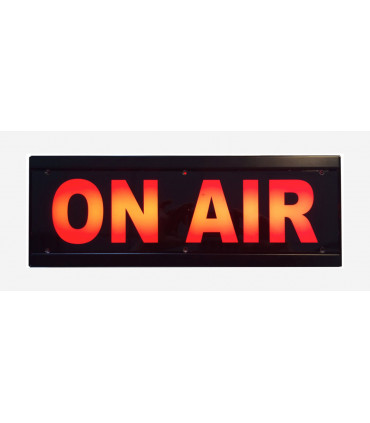

DM ON AIR LIGHT: Professional ON AIR light for broadcasting installations. Laser-cut polycarbonate graphic panel. RJ45 connection, operation and output voltage 12 Vdc. Current 330 mA. Input voltage 100-240Vac. Product dimensions: H 38,3 cm D 4,2 cm H 13,5 cm 1 Kg.

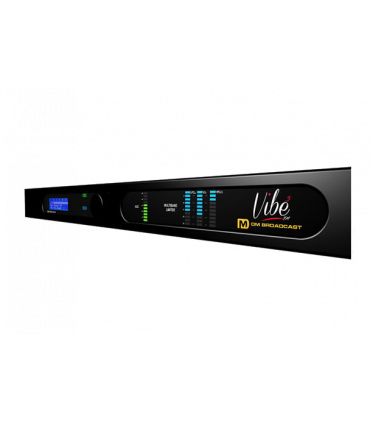

DM DIVE 3 FM: 3-band audio processor with built-in RDS encoder Stereo generator. Graphic display, incremental encoder. Stereo separation 60dB 30-15 KHz, RDS 25 PS, 25 radio text (64 sources), 24 AF lists. Inputs: SCA, analogue on balanced XLR.

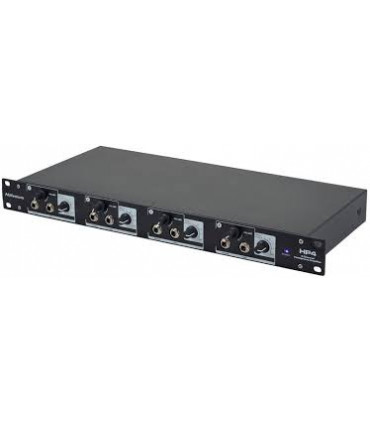

4 independent stereo inputs with asymmetrical jack sockets; Separate volume control for each channel; Easily expandable: up to 4 devices can be operated together; Internal shielded dual regulation power supply with voltage selector for 115V / 60Hz or 230V / 50Hz; 19", 1U

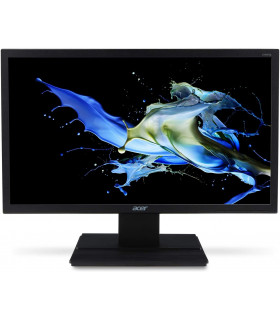

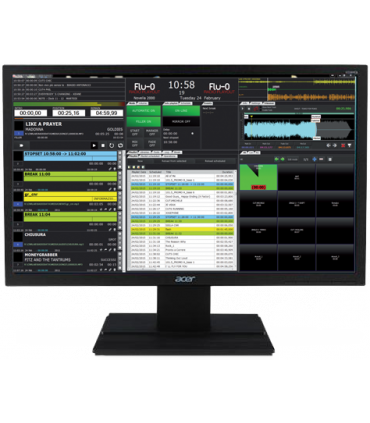

ACER: 23.6" TN Full HD 1920x1080 LED monitor screen, 5 ms, 1000: 1, 250 cd / m2, D-Sub, port DVI I / O VGA DVI-D HDMI

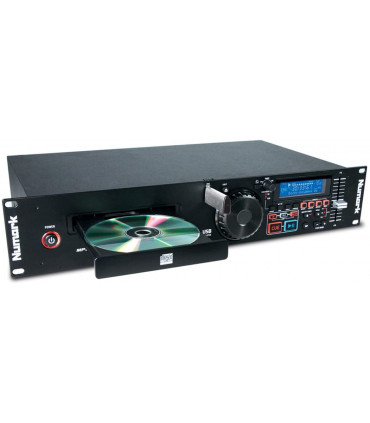

NUMARK SINGLE MP3: "WAW / MP3 CD player with USB, search selector / navigation, playback start with automatic fader

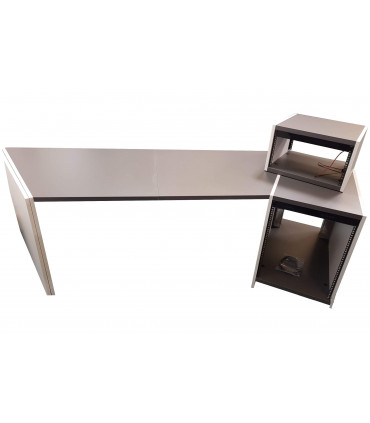

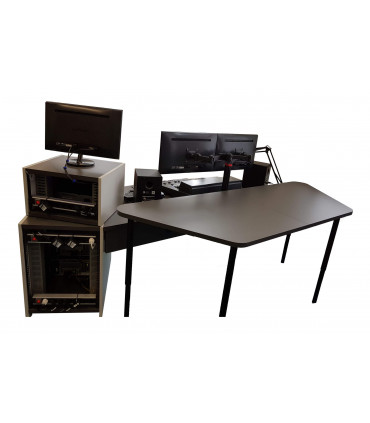

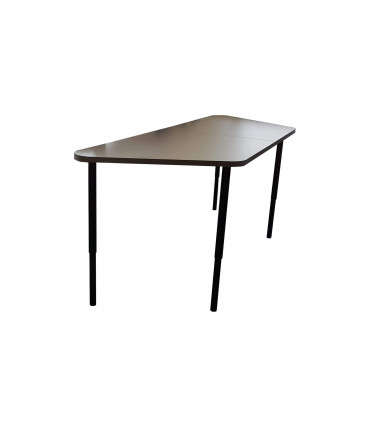

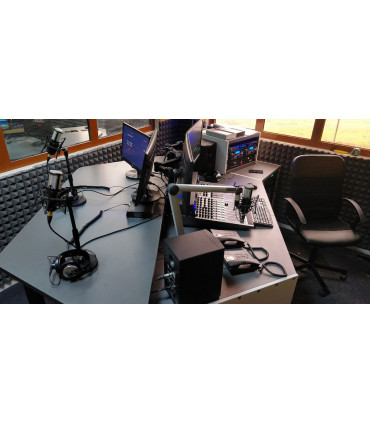

Diffusion table: desk with scratch-resistant surface, 15U side shelf, cylindrical legs, one top shelf (8 or 4U), plus additional guest desk with legs and place for hdp dispenser

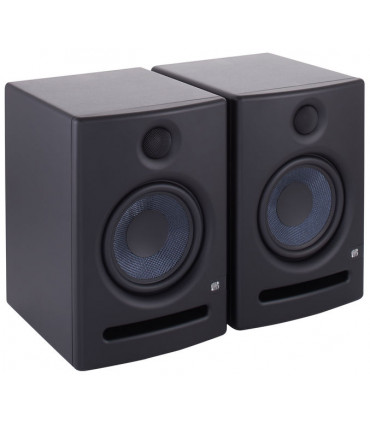

PRESOMUS ERIS 5: Pair of active studio monitors, LF driver: 4.5" (114 mm) Kevlar, HF driver: 1" (25 mm) silk dome, Frequency response: 70 Hz - 20 kHz, Crossover frequency: 2 , 8 kHz, LF amplifier Power: 25 W per speaker, SPL peak (at 1 meter): 100 dB, Input impedance: 10 kOhm

Prewiring in AIR STUDIO including: cables, connectors, interconnection cables (balanced audio cable 100 Mt, cable 100 MPX, Lan cable 100 Mt) and factory test.

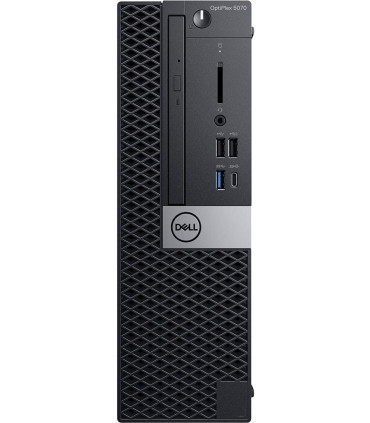

DELL: Computer with Playout Standard SW, library ingest, playlists, adv. management, runtime scheduling, audio editing, instant player recording. PC 4U RK - Win 64 bit i5 8 GB RAM HD SO 250 GB 2X2 TB HD. Sound Card 4 stereo XLR OUT Bal. XLR 4 stereo XLR IN Bal. With cable

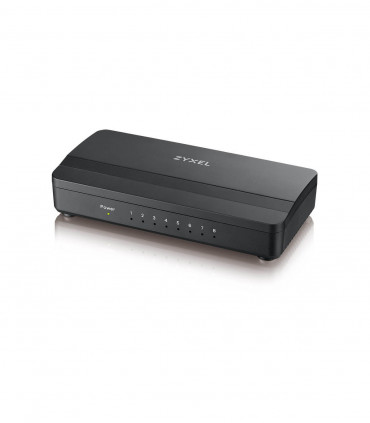

ZYXEL GS-108S: 8-port desktop Gigabit Ethernet multimedia switch for simultaneous connection of multiple multimedia devices to networks with ultra-fast Gigabit speed.

Product Details
PKG-ONS01SMA-21k
