Tilta NUCLEUS M-WLC-T03
TILTA NUCLEUS-M WIRELESS FOLLOW FOCUS WLC-T03

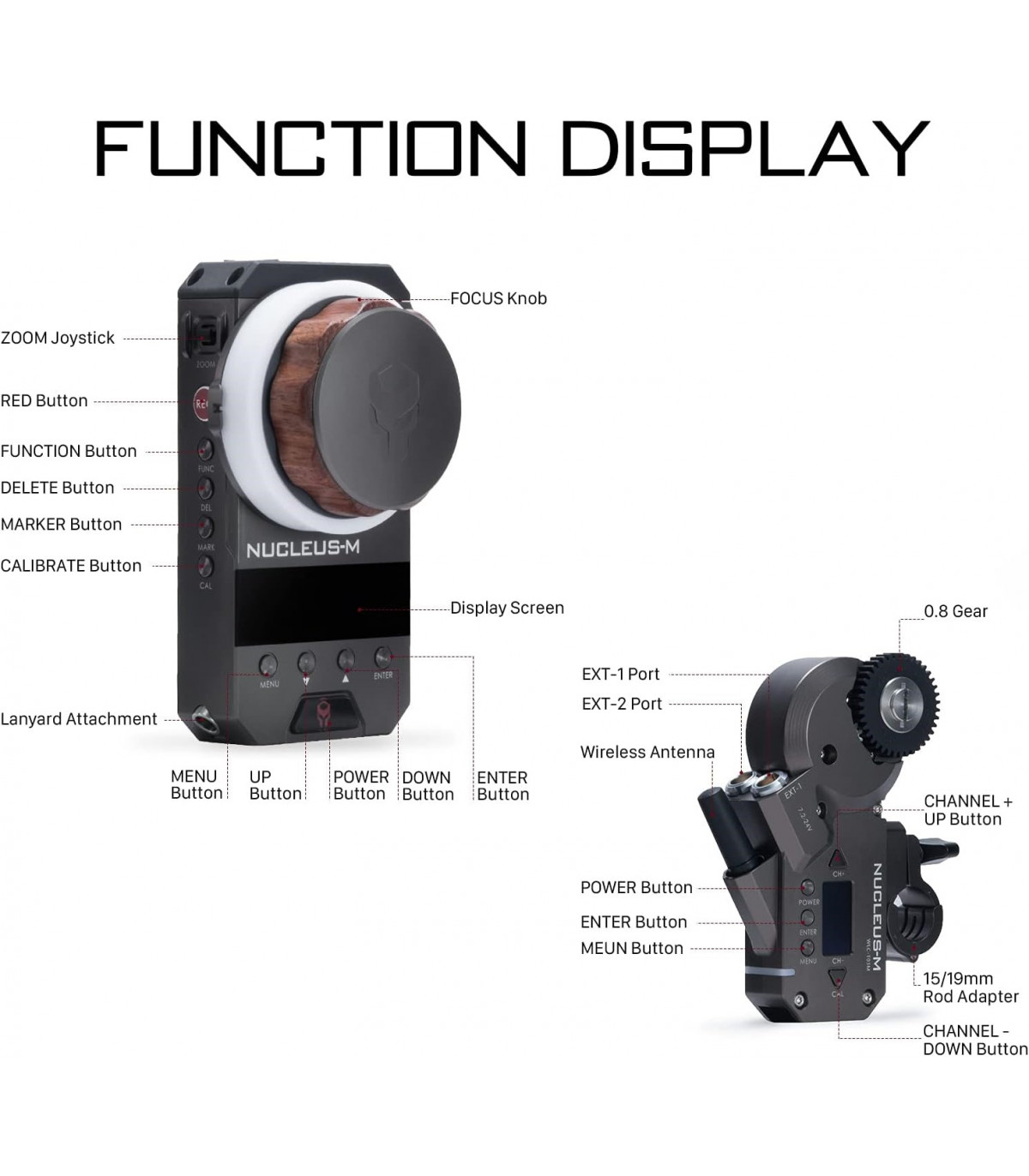

The Tilta K3 Nucleus-M is a revolutionary system for controlling the lens via three highly customizable wireless channels. It also gives you full control over focus, iris, and zoom on the FIZ manual unit or between the two wireless handles.
In addition, you can even split channel control between the manual unit and the wireless handles as you see fit with the simple press of a button.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Tilta NUCLEUS M-WLC-T03

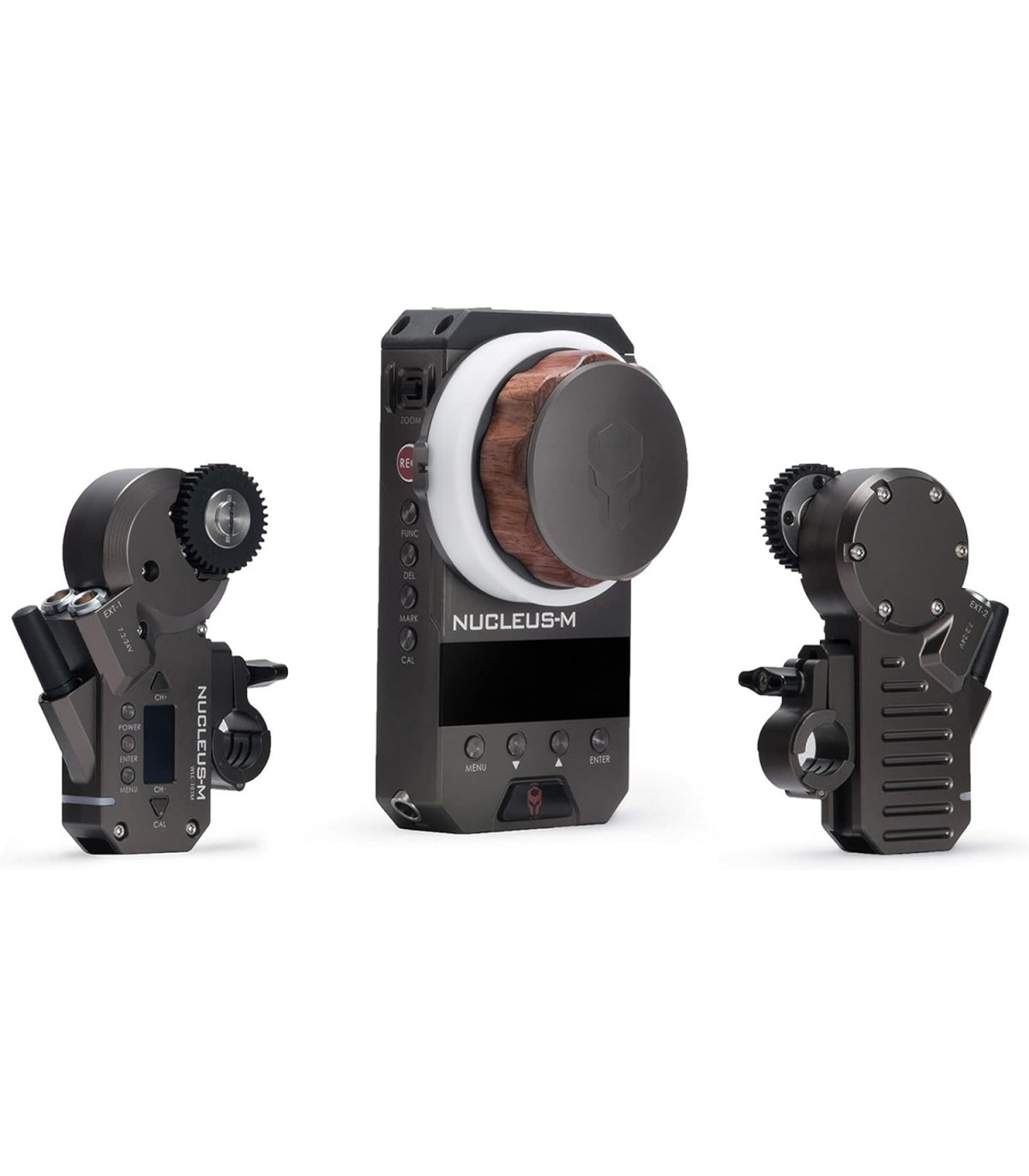

The Nucleus M wireless system enables wireless connectivity between the handle(s) and the motors. It can be used with a gimbal, a shoulder mount with a dedicated rosette mount, or even a drone.
The Nucleus M system stands out from other products on the market with a wireless operating range of up to 304 m, making it ideal for drones or long-distance applications.
Each motor is equipped with a wireless module to receive signals without an MDR, ensuring greater compactness and ease of setup.

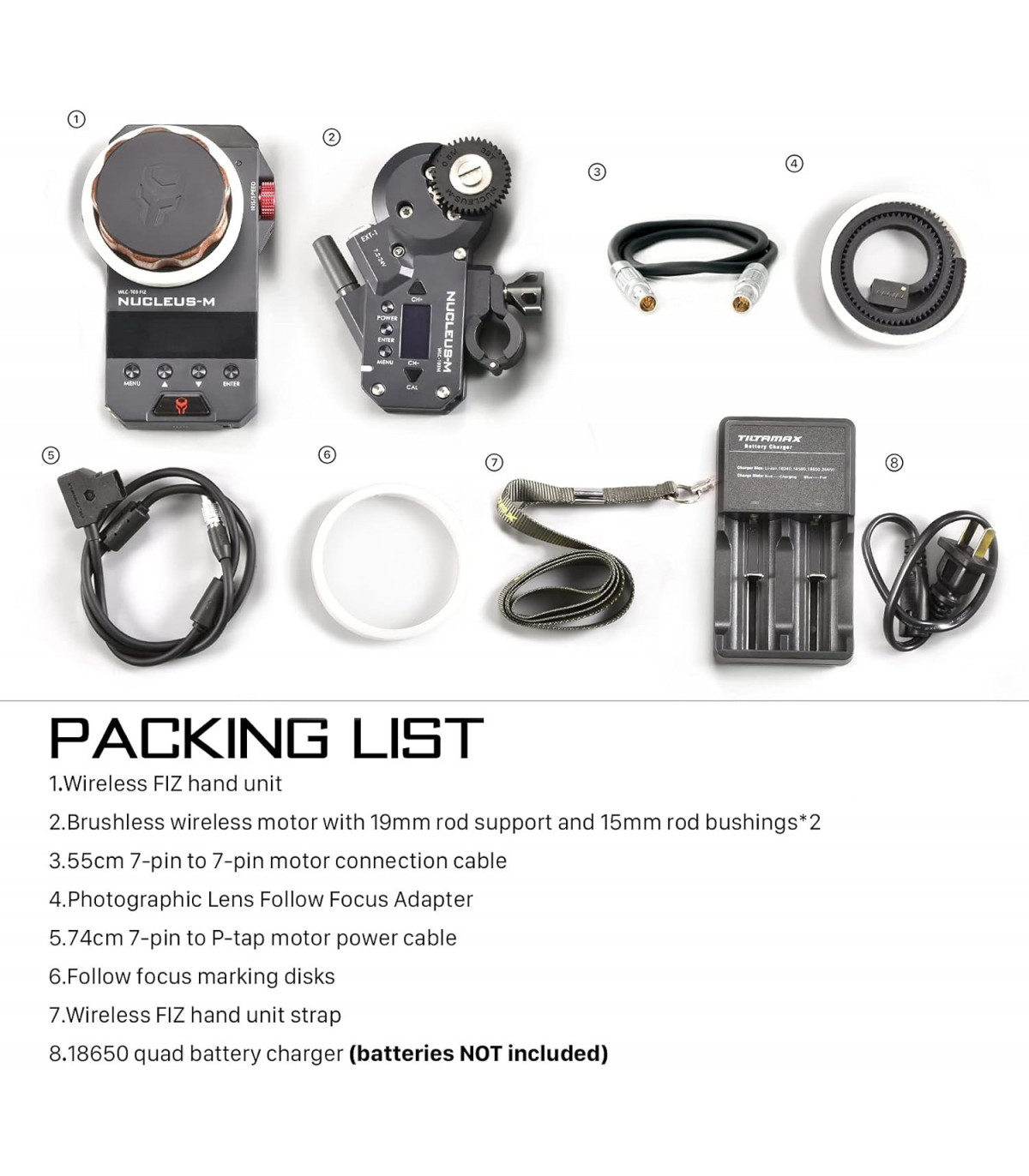

Kit includes:
1x FIZ Wireless Hand Unit
2x Wireless Motors with 15/19mm rod mounts
2x Wireless Handles
4x Marking Disks for Follo focus
1x Motor power cable (approx. 74 cm)
1x Motor connection cable (approx. 18 cm)
1x Motor connection cable (approx. 74 cm)
2x Adapters for ARRI Rosettes #WLC-T03RS
2x Gimbal adapters (compatible with 25-30 mm tube diameters) #WLC-T03GR
1x Battery charger
1x Hard-shell carrying case
Batteries must be purchased separately. The system requires 6 batteries to function properly.
You can select them from the product accessories.
SCHEDA TECNICA
Wireless Range 1000' / 304 m
Material of Construction Aluminum alloy, stainless steel, ABS plastic, rubber, Brazilian Rosewood
Batteries Required
Hand Controller: 2 x 18650
Handgrip: 2 x 18650 in each
Note: Battery must have a raised anode (positive) end, not a flat end
Power Batteries
3.7 VDC, 3000 mAh
Battery Charger
100 to 240 VAC, 50/60 Hz, 0.15 A
5 VDC, 2 A
Dimensions Motor
4.50 x 3.25 x 1.38" / 11.43 x 8.26 x 3.49 cm
Battery
Diameter: 0.6875" / 1.7463 cm
Length: 2.5625" / 6.5088 cm
Weight Motor
0.42 lb / 0.19 kg
0.50 lb / 0.22 kg (with 15mm rail adapter)
0.49 lb / 0.22 kg (with 19mm rail adapter)
FIZ Hand Unit
0.97 lb / 0.44 kg (with focus disk, no batteries)
1.16 lb / 0.53 kg (with focus disk and batteries)
Handgrips
Right Grip: 0.58 lb / 0.26 kg (no batteries or adapters)
Left Grip: 0.53 lb / 0.24 kg (no batteries or adapters)
Rosette
Rosette Male to Handle Grip Adapter: 0.16 lb / 0.07 kg
25 mm/30 mm Gimbal to Handle Grip Adapter: 0.10 lb / 0.04 kg
