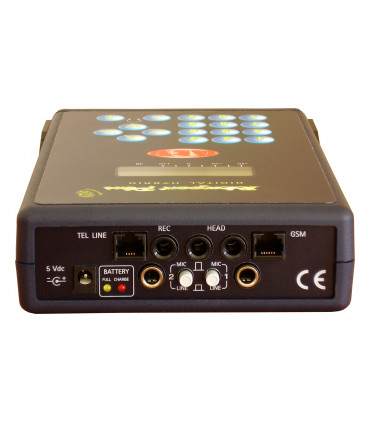

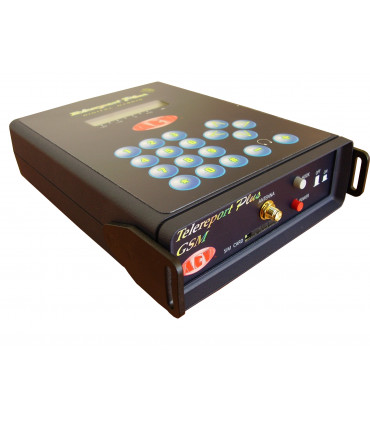

Telephone Hybrid Telereport Plus AEV

Telephone Hybrid Telereport Plus AEV

AEV Telereport Plus Digital Hybrid Hybrid Handset Telephone with GSM

TELEREPORT Plus is the new portable telephone device (with digital echo canceller) developed by AEV thanks to its ultra-decennial experience in the field of telephone transmission systems.

Its small size and weight are the ideal solution for Reportage Service and for audio transfer both through dial-up telephone lines and via mobile GSM.

€2,154.60 No tax €2,268.00
-5%
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
AEV Telereport Plus
Brand:
Description

Telephone Hybrid Telereport Plus AEV

It is particularly suitable for conditions where the reporter's operations are limited by the absence of dedicated links.

This device is housed inside a shockproof shell. On the top panel, with the keypad, there is an LCD display (65×14), which displays the instrument status and the connection for the GSM mobile phone.

Scrolling through the menus using the "arrow keys" is also located on the front panel with a numeric keypad, which is used to select and store/recall the corresponding numbers.

Main functions:

  • Control and management via DSP microprocessor,
  • Maximum separation between incoming and outgoing line audio thanks to the digital cancellation circuit in case of dial-up line call
  • Parametric equaliser capable of equalising the input audio signal, thus optimising the frequency response and gain of the received signal based on the quality of the available filter line.
  • Equipped with an internal GSM module, with external antenna: it can be connected to TELEREPORT PLUS via the connector on the front panel.
  • High efficiency NiMh internal batteries, their recharge is controlled by a special circuit, ensuring maximum efficiency and durability.
  • Call and busy circuit with DTMF tone detection and replay.
  • Test tone generation to adjust the audio through the telephone line.

Features

- Two audio inputs, with Micro/Line selection via button on the panel panel.

- Two headphone outputs with level adjustment via a digital potentiometer located above the panel, with level display on the diplay.

- REC audio output, with level adjustment by means of special menus and relative display on the display

- All the functions shown on the display can be accessed via the keypad

MIC INPUT:

  • Configuration: Balanced transformer input (EMI Filter)
  • Input impedance: 200 Ω balanced
  • Input level range: -60 dBu ÷ - 50 dBu adjustable
  • Frequency response: 100 Hz ÷ 6 KHz
  • Noise: -63 dBu (din Audio)
  • Connector: Jack 6 mm stereo female
  • ALC control range: between -60 ÷ -40 dBu
  • ALC attack time: 10 mSec
  • ALC release time: 2 Sec

LINE ENTRANCE:

  • Configuration: Balanced electronic input (EMI filter)
  • Input impedance: 20 KΩ electronically balanced
  • Input level range: 0 dBu ± 12 dB adjustable
  • Frequency response: 100 Hz ÷ 6 KHz
  • Noise: -66 dBu (din Audio)
  • Connector: Jack 6 mm stereo female
  • HEADPHONE OUTPUT (filtered EMI)
  • Power: 2×160 mW at 50 KHz adjustable level
  • Frequency response: 100 Hz ÷ 6 KHz
  • Connector: Jack 6 mm stereo female

EXIT REC: ( EMI FI )

  • Output impedance: 100 Ω unbalanced
  • Output level: 0 dBu fix
  • Frequency response: 100 Hz ÷ 6 KHz
  • Connector: Jack 6 mm stereo female

HYBRID CIRCUIT:

  • Standard specification: ETS 300001 (NET4)
  • Impedance: 600 Ω (EMI Filter)
  • RX level: -10 dBu (adjustable gain -6 ÷ +18 dB)
  • TX level: 0 dBu
  • Zero Hybrid: -40 dBu full band
  • Frequency response: 230 Hz ÷ 3400 Hz
  • Distortion: 0.8
  • Connector: RJ11 4 pin

GSM INTERIOR:

  • Standard freq.: 900/1800 (1900 on request)
  • Frequency response: 200 Hz ÷ 3700 Hz
  • Antenna connector: SMA Female

MOBILE CONNECTOR: (FOR EXTERNAL GSM)

  • TX level: -10 dBu
  • RX level: -6 dBu
  • Connector: RJ11 6 pin
  • GENERAL DATA:
  • Power supply: 3 batteries (NI-MH) 1.2 V 2300 mAh
  • Power consumption: 300 mA - With GSM: Rx 500 mA - Tx 800 mA
  • Autonomy: 7.5 hours of standard operation Max 2.5 with GSM
  • External supply: 5 Vdc 500 mA
  • Dimensions (WxHxD): 14 x 44 x 19 cm
  • Weight: 0.8 Kg (with internal GSM option)
  • Operating temperature: 0 ÷ 50° C
