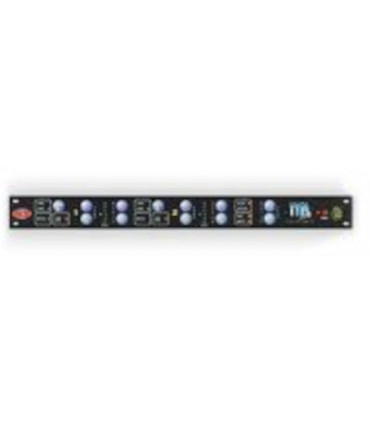

ITB302 EVO-HYBRID PHONE AEV

ITB302 EVO

AEV ITB-302 EVO is the new model of telephone hybrid that meets all the latest requirements for advanced telephone line communications management. It is designed in a 19" rack, 1 unit; and contains two internal telephone hybrids 2. Several units of ITB302 can be interconnected to allow expansion to "n" lines while maintaining ease of use and remote control capability. The telephone lines, properly filtered and isolated, allow audio conferencing between each other and the DJ. An internal microprocessor provides a number of functions that, until now, have been difficult to provide in the same unit. All potentiometers have been eliminated to solve wear and tear problems. All adjustments are made digitally.

€1,425.00 No tax €1,500.00
-5%
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
ITB302 EVO-TELEFONO IBRIDO AEV
Brand:
Description

ITB302 EVO

AUDIO LEVEL:

Input level (SEND 1/2): ±12 dBm

Input impedance: >10 KΩ Electronically balanced

Connector: XLR female

Output level (RECEIVE 1/2): ± 12 dBm

Output impedance: 100 Ω electronically balanced (maximum load 600 Ω)

EXPANSION

Input level: 0 dB

Input impedance: >10 KΩ

Output level: 0 dB

Output impedance: 100 Ω

Connector: TRS stereo jack female 6.3 mm

HYBRID CIRCUIT:

Input/output: balanced and floating

Impedance: 600 Ω

RX level: - 20 ÷ 0 dBm

TX level: - 8 dBm

Hybrid null: - 40 dB Full Band (on urban telephone line)

Frequency response: 230 ÷ 3400 Hz

Distortion: 0.8%.

4 WIRES SECTION:

Impedance: 600 Ω

RX level: - 12 ÷ + 12 dBm

TX level: 0 dBm

Frequency response: 50 ÷ 20000 Hz (-1 dB)

Distortion: 0,8

Noise: ≥74 dB (DIN noise)

Crosstalk: ≥75 dB (1KHz 0dBm)

MEETING SECTION:

Input connector: XLR female

Input meeting: ±12 dBm

Input meeting impedance: >10 KΩ

Electronically balanced >10 KΩ

Output connector: XLR male

Output meeting: ±12 dBm

Impedance electronically balanced 100 Ω Electronically balanced (maximum load 600 Ω)

GENERAL DATA:

Power supply: 87 to 254 V 50/60 Hz 10 VA

Dimensions: 19″ Rackmount 1 Unit

Weight: 4.0 Kg
