Hybrid Telephone Dial-103A GSM Gateway

GSM Gateway / UMTS Gateway

Call redirection devices for landline to mobile phone calls that provide dramatic reductions in costs and emergency lines. Devices with extended input and output interfaces for industrial applications.

Compatibility with analog trunk interface (FXS), analog extension (FXO), ISDN BRI, IP VoIP SIP. App for iPhone and Android smartphones for advanced Call-Back services.

€279.30 No tax €294.00
-5%
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
Telefono Ibrido Dial-103A GSM Gateway
Description

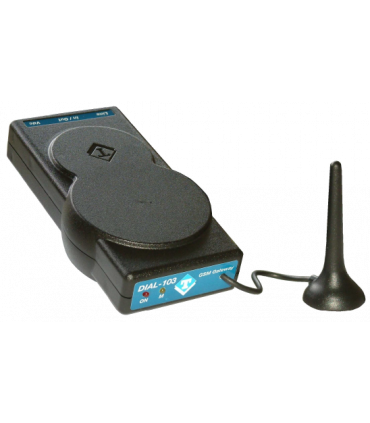

EuroCaster Dial-103A GSM Gateway

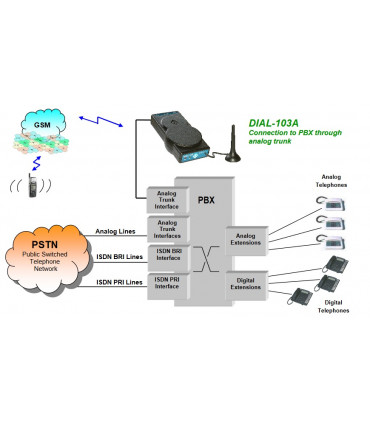

Connection to the exchange via analog trunk interface (FXS)

DIAL-103A is a new small-sized GSM gateway that reduces mobile telephony costs from PBX extension or stand-alone applications with a rapid ROI (Return On Investment). Using DIAL-103A, users can eliminate mobile cross-network costs as it securely transforms fixed-mobile calls to mobile-mobile by leveraging its Dual-Band GSM engine. The unit features an FXS port for connection to the PBX, via an analog trunk interface, or to a regular DTMF phone.

DIAL-103A uses a SIM card that allows the user to call low cost cellular phones. For incoming calls, using the internal GSM engine, DIAL-103A redirects them to the PBX with modem transmission of the caller's identity (CLI presentation).

Completely Plug&Play, very easy to install, DIAL-103A allows to monitor the GSM signal strength through DTMF commands.

DIAL-103A is programmable via DTMF tones or via SMS.

Main Features:

Built-in Dual-Band 900/1800MHz GSM engine

Small size module

High voice quality

Plug & Play installation

Programmable via local phone or remotely via GSM call, SMS message or PC serial port (optional)

Conversation time-out

Caller identity display option (Calling Line Identification service)

Audio field strength indicator

Dimensions (HxWxD): 30 x 75 x 137 mm

Operating temperature: 0°C - 45 °C

Weight: 500 gr packed

Power supply: Input 220V, 50Hz

Product Details
Telefono Ibrido Dial-103A GSM Gateway
