PACKAGE-ON AIR STUDIO 9K AEV

PACKAGE-ON AIR STUDIO 9K AEV

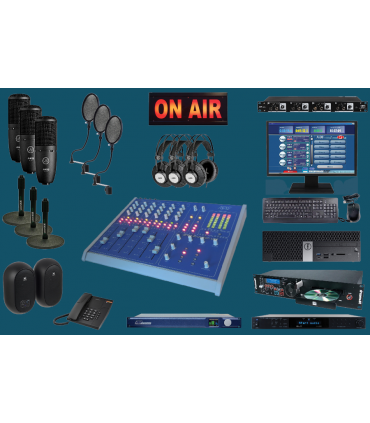

This package is characterized to include the following components: No. 2 Speakers and Guest, No. 2 Hybrid Phones= YES, No. 3 Band Audio Processor= YES, PC Work Station= YES, Installed Play-out Software= YES

€8,357.57 No tax €8,797.44
-5%
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
PKG-ONS02-9K
Brand:
Description

ON AIR STUDIO 9K AEV

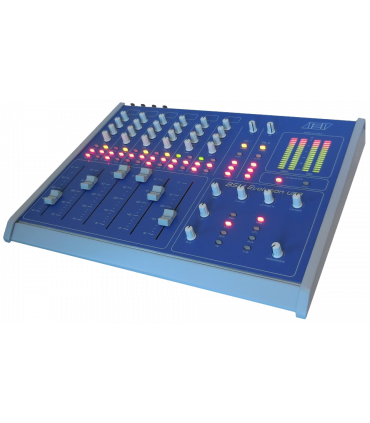

AEV-BSM Evo USB Mixer Console: Broadcast Console with 6 switchable dual input channels, 4 micro balanced and 6 unbalanced line inputs, 2 USB audio interface I/O, 2 hybrid telephone; 3 master outputs PGM, UTL & AUX, C.Room & C. Studio output, Talk back return, headphone output.

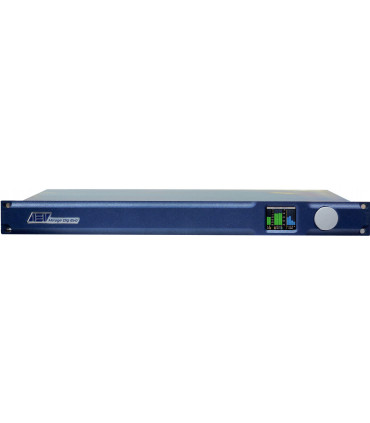

AEV-MIRAGE 3 DIG EVO-MPX Audio Processor : Broadcast 3 band digital audio processor, Analog & Digital IN/OUT, MPX digital stereo encoder, GPIOI, LAN connection, web server.

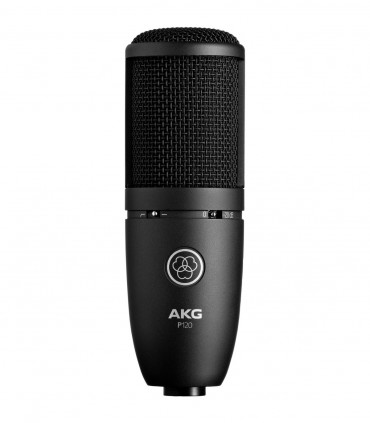

AKG P120: Universal recording microphone

Large diaphragm 2/3" condenser microphone.

Cardioid feature

Frequency range: 20 - 20000 Hz

Low-cut switchable to 120 Hz

Pad -20 dB switchable

Maximum SPL: 130 / 150 dB

Diameter: 53 mm

Length: 165 mm

Weight: 525 g

Color: Black

Stand adapter included

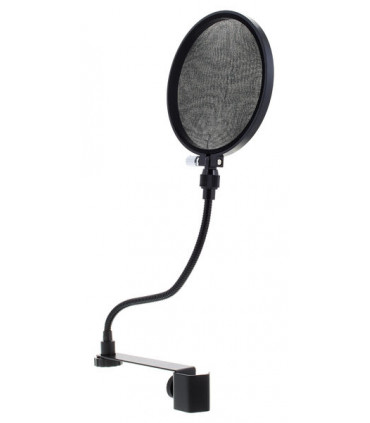

T.BONE MS 180 Popkiller mounting:

With elastic arm

Arm length: 20 cm

Edge-ring: Ø 15,5 cm

Nylon cover: Ø 14 cm

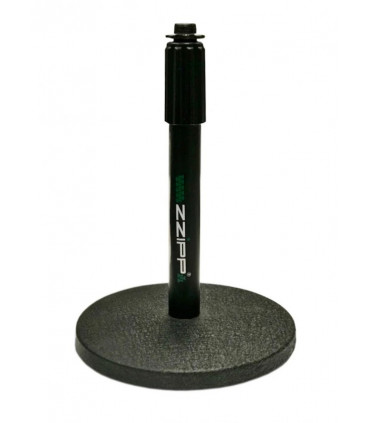

Zzip 710 Mic Arm: Mic Arm table arm, black

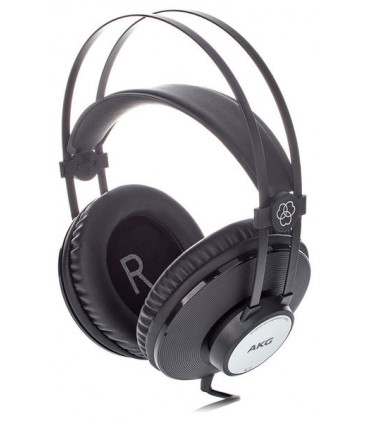

AKG K 72: Closed-back headphones, dynamic headphones, 200 mW, 16 to 20000 Hz, 112 dB SPL/V, 32

Ohm, Cable length 3 m, Stereo plug - 3.5 mm (1/8") with 6.3 mm (1/4") screw adapter, Matte black finish, Net weight 200 g

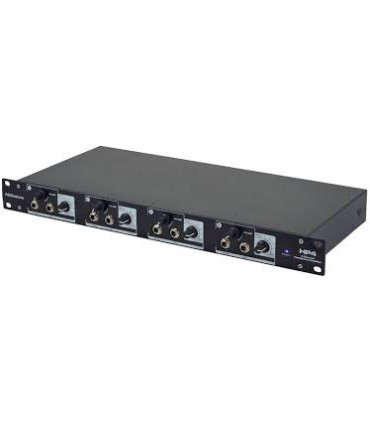

Millenium HP4 Headphone Distributor: Millenium HP4: 4 independent stereo inputs with asymmetrical jack sockets; separate volume control for each channel; easily expandable - up to 4 devices can be managed together; dual-regulated internal shielded power supply with voltage selector for 115V / 60Hz or 230V / 50Hz; 19", 1 U

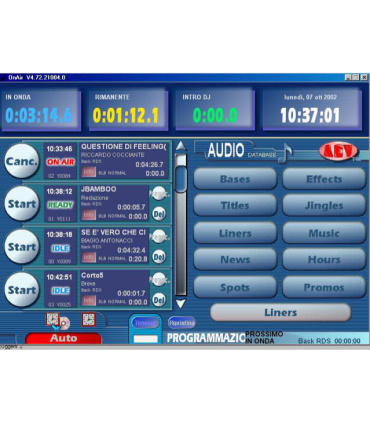

AEV-WS1000-SSD+SW LITE+2LCD AEV-Workstation rackmount, cpu i5, 8 Gb Ram, SSD, S.O.Win10 Professional, + 2 LCD 22" + Radio Automation Software - PlayOut Lite version, Eva DataManager Lite, Eva Traffic Manager Lite with 1 year of remote support service

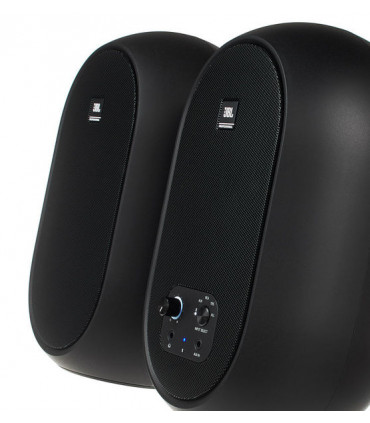

JBL 104: Active Speaker - ACTIVE SPEAKER-Pair of Active studio Monitor,

1x 4.5 bass reflex woofer

1x 0.75 coaxial tweeter

60 W class D amplifier (30 W per speaker)

Frequency response: 60 - 20,000 Hz

Dispersion pattern: 120° x 120°

Max. SPL (sound pressure level): 104 dB

1 RCA input

2 Jack inputs (symmetrical) on the back

AUX 3.5 mm Jack input on front

Headphones output 3.5 mm Jack on front

Dimensions (H x W x D): 247 x 153 x 124 mm

Total weight: 3.79 kg

Color: Black

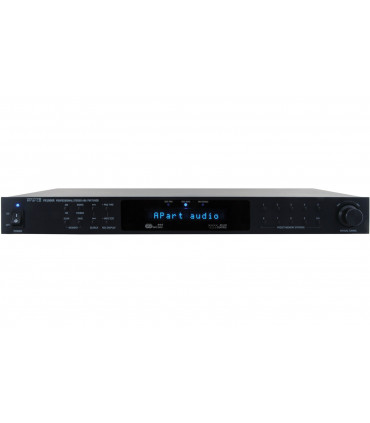

Apart PR1000R: Tuner-Professional 19" AM/FM RDS tuner controllable via RS232 or infrared.FM tuning range : 87.5 - 108 MHz,522 - 1611 kHz

Presets: 40, 230 VAC/50 Hz, 1U Rack, 230 VAC/50 Hz.

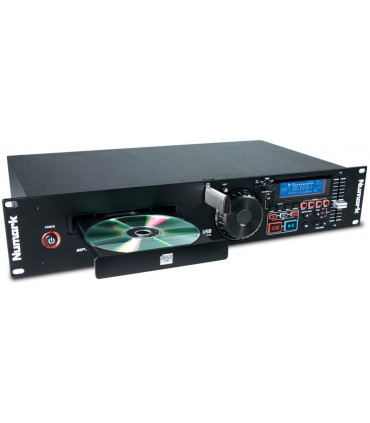

Numark Single MP103 USB "CD Player : Numark WAW/MP3 with USB, jog dial for search/scan, Auto-cue

Fader start play .

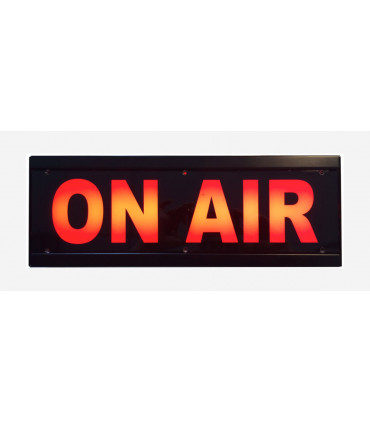

DM ON AIR Light: Professional ON AIR Light for Broadcast facilities. Laser cut polycarbonate graphic panel. RJ45 connection, operation and output voltage 12 Vdc. Current 330 mA. Input voltage 100-240Vac. Product Size: W

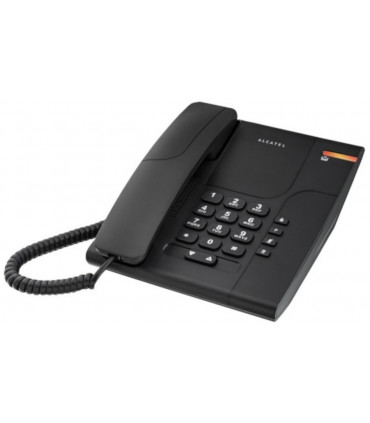

ALCATEL TEMPORIS 180 Phone: Black set phone with incoming call indicator light, Last number redial, Wall mountable, Message waiting indicator, Earpiece volume adjustable: 5 levels.

Entry Level Prewiring - Entry Level for Studios

Product Details
PKG-ONS02-9K
Related products
€28.50 €30.00
-5%
T.BONE MS180 Microphone hiss shield The MS 180 is the perfect accessory for any vocal recording session and efficiently removes any unwanted "P's" and hiss. With its flexible and elastic arm, as well as its strong...
€1,440.00 €1,600.00
-10%
MIRAGE 3 DIG EVO FM-AEV AUDIO PROCESSOR MIRAGE DIG EVO the new Digital Audio Processor AEV The Mirage Dig Evolution is a fully digital audio processor, based on DSPMirage Dig Evo technology is a complete audio signal...
€23.26 €24.48
-5%

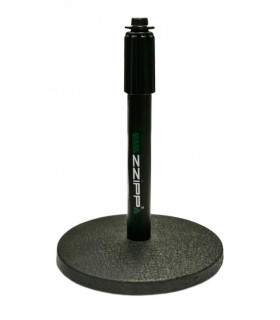

MONACOR ZZIPP  MSZZ710 Desktop microphone stand with anti-vibration die-cast base with sturdy metal construction with adjustable height.
