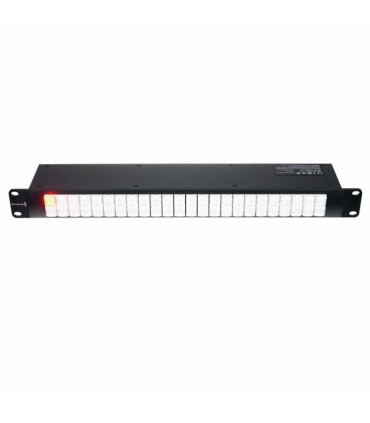

Blackmagic Videohub Smart Control Pro control panel
Blackmagic - Videohub Smart Control Pro
Un control panel for videohub
When you want the fastest routing you can get, then Blackmagic Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Powers via DC or the Ethernet connection!
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Blackmagic - Videohub Smart Control Pro
Key Features
Routing Switcher
48 Programmable Buttons
10 Programmable Macro Buttons
1 RU Rackmount Size
Mac and Windows software included for button configuration
Ethernet source and destination control
USB Type-C software configuration port
Power fail protection to preserve button configurations
Power via PoE or separately available power cable
Blackmagic Design Videohub Specs

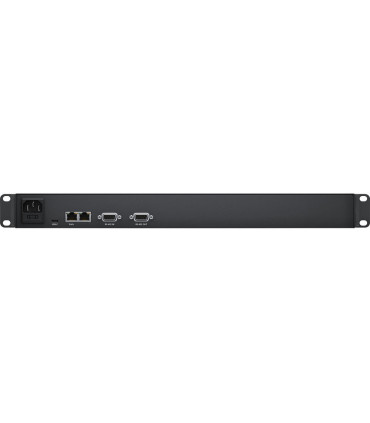

Connections
Ethernet
RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
RS-422
In and Out (for future implementation)
Computer Interface
USB-C for configuration and software updates.
Power
100 - 240 AC
Videohub Smart Control Pro
Macro Capability
Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.
Hardware Control
48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.
Software
Internal Software upgrade via included firmware updater application via USB.
Operating Systems
Mac icon
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows Icon
Windows 10.
Physical Installation
1 rack unit size. Less than 3 inches deep.
Button Configuration
Included free for Windows™ and Mac™ via USB 2.0high speed (480Mb/s) interface.
Power Requirements
Power Fail Protection
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Power Supply
Internal 100 - 240 V AC
Physical Specifications
Videohub Smart Control Pro
Environmental Specifications
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
