SmartView monitors are ideal for monitoring the best broadcast productions, thanks to high-quality filtering and scaling that preserves every single image detail. The unique digital design and SDI inputs ensure accurate and easily manageable color on all displays in use. SmartView's Ethernet port allows connection to the desired network, and centralized control of all monitors via a single computer with the SmartView software utility. SmartView also integrates a tally function, which is fully compatible with many models of switchers and automation systems.

€736.25 No tax €775.00
Size chart
Women's clothing size
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

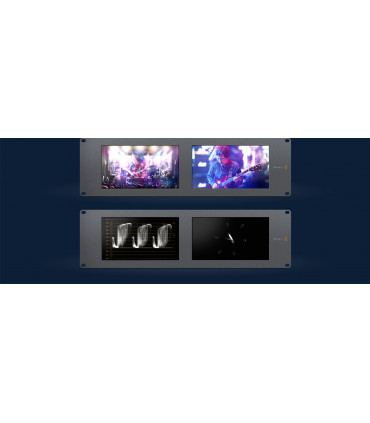

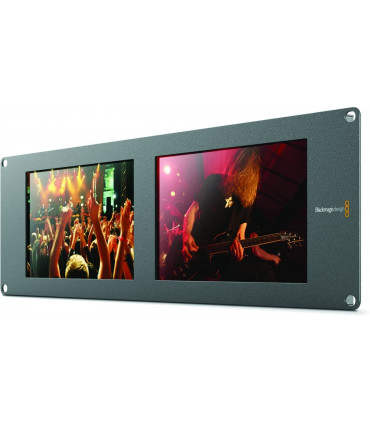

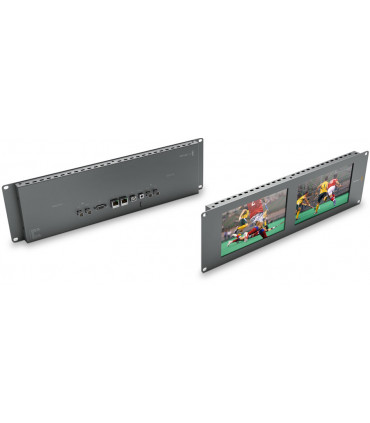

Blackmagic Design SmartView Duo


Rack mountable dual monitor bridge with two 8" LCDs

3U size

For monitoring SDI/HD-SDI and 3G-SDI via software control

Screens can be adjusted via Ethernet connection

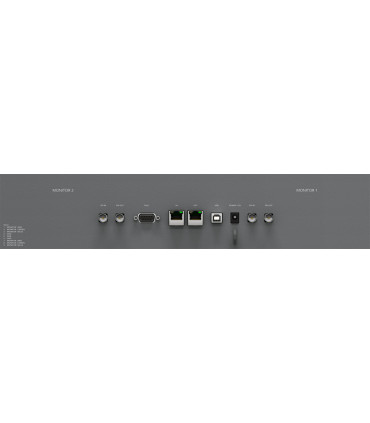

SDI video inputs: automatically switch between SD, HD and 3G-SDI signals (reclocked loop-through output)

Multi-rate support: automatic detection of 2K, HD or SD inputs

Updates and configuration via USB 2.0 High Speed (480 Mb/s)

Ethernet network: 10/100 BaseT with loop-through filter

Tally: 9-pin SUB-D connector

Power supply: 12 V universal power supply unit (included in delivery)

Operating voltage range: 12-15 V

Power consumption: < 20 W

Dimensions: (W x H x D): 482 x 133 x 35 mm

Weight: 1.43 kg


SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M

SDI colour space: REC 601, REC 709

SDI auto switching: Automatically selects between SD, HD SDI and 3 Gb/s SDI

Video sampling frequency: 4:2:2 and 4:4:4

Supported SDI formats: 525i/59.94 NTSC, 625i/50 PAL, 720p/50, 720p/59.94, 720p/60, 1080p/23.98, 1080p/24, 1080p/25, 1080p/29;97, 1080p/30, 1080p/50, 1080p/59.94, 1080p/60, 1080PsF/23.98, 1080PsF/24, 1080PsF/25, 1080PsF/29.97, 1080PsF/30, 1080i/50, 1080i/59.94, 1080i/60

2K format support: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24/PsF, 2K DCI 25/PsF

Compatible operating systems: Mac 10.12 Sierra, Mac 10.13 High Sierra or later, Windows 8.1 and 10


Display element: TFT Active Matrix LCD

Display resolution: 800 x 480 pixels

Response time: < 15 ms

Contrast ratio: typically 500:1

Colour depth: 16.7 million colours

Product Details
Blackmagic Design SmartView Duo
