ITB 101 Hybrid Telephone AEV

ITB 101 The new AEV telephone hybrid

ITB 101 is a high quality telephone hybrid that solves the problems of audio connection between telephone lines and broadcasting mixers.

ITB 101 allows to connect and hybridize a telephone line with broadcast quality.

This model, in line with AEV philosophy, offers an exceptional price/performance ratio.

€427.50 No tax €450.00
-5%
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
Telefono ìbrido ITB 101 AEV
Brand:
Description

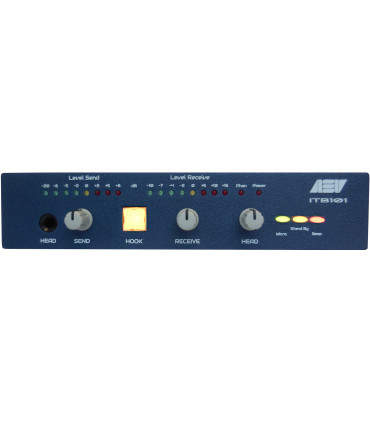

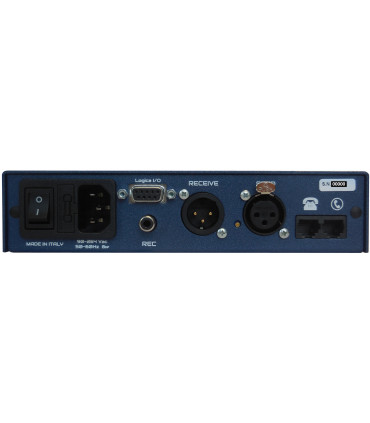

ITB 101 AEV

  • - broadcast-quality hybrid telephone
  • - balanced audio input and output
  • - independent adjustment of audio signal input (Receive) and output (Send)
  • - independent recording output
  • - input and output signal level visualization by dedicated led meter
  • - auto-hook function
  • - Audio connector for headphones monitor with independent adjustment
  • - audio input in microphone mode with phantom power supply (OPTIONAL)
  • - GPI/O remote control with DB9 connector
  • - desktop positioning, with accessories for 19″ 1U rack mounting

AUDIO LEVEL

  • Input level (SEND): -20 to +8 dBm
  • Input impedance: >10 KΩ Electronically balanced
  • Connector: XLR female
  • Output level (RECEIVE): -10 to +16 dBm
  • Output impedance: Electronically balanced (maximum load 600 Ω)

HYBRID CIRCUIT:

  • Input/output: balanced and floating.
  • Impedance: 600 Ω
  • RX level: - 20 ÷ 0 dBm
  • TX level: - 8 dBm
  • Hybrid null: - 40 dB Full Band (on urban telephone line)
  • Frequency response: 230 ÷ 3400 Hz
  • Distortion: 0.8%.
  • Power requirement: 87 ÷ 265 VAC 50 ÷ 60 Hz
  • Consumption: 4 VA
  • Dimensions (WxHxD): desktop: 21 (W) x 13 (D) x 4,4 (H) cm - rack version: 48,3 x 13 x 4,4 cm 1 rack unit
  • Weight: 1,5 Kg.
  • Operating temperature: 0 ÷ 50° C

Product Details
Telefono ìbrido ITB 101 AEV
