673 INOmini INOVONICS-FM-RDS-MONITOR-RECEIVER
Inovonics 673
FM/RDS monitor/receiver
INOmini 673 is Inovonics' second generation FM broadcast monitor.
A sensitive and selective off-air receiver for standard analog-FM transmissions, it has an application as a "trusted monitor" or as a retransmission receiver in the FM translation service. The 673 decodes and displays even the most important data of RDS/RBDS data sets.
The INOmini 673 provides front panel and remote program and RDS transmission errors alarm indications. It can also provide high quality audio power supply for program distribution throughout the transmission structure with adjustable AES digital and analog audio outputs.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Inovonics 673 inoMINI FM/RDS monitor/receiver
Features:
- This sensitive and selective DSP-based (SDR) receiver has extended band coverage down to 64MHz.

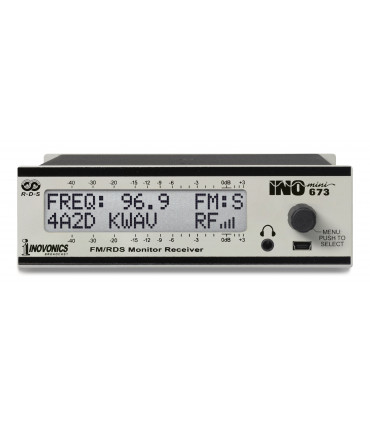

- Easy front-panel setup uses jog-wheel menu navigation with a large LCD display. Accurate, hi-res metering shows RF signal and audio levels; critical system menus are hidden.
- Front-panel display of most-essential RDS/RBDS information including RT+ ‘tagging’ data.
- Balanced analog and AES-digital program line outputs are available simultaneously; levels are independently adjustable.

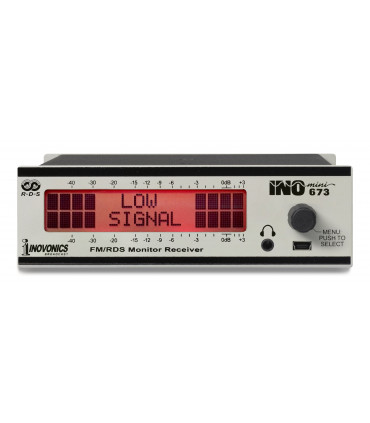

- Flashing-red front-panel alarms and rear-panel ‘tallies’ indicate RDS Loss or PI Error, Low Signal and Audio Program Loss.
- All receiver setup parameters are held in non-volatile memory.
- When issued, free firmware updates are easily installed in the field.
Specifications:
Tuning Range
Extended FM band: 64MHz to 108MHz in 100kHz steps
Antenna Input
75-ohm (F)
Sensitivity/SNR
10dBμV for 50dB monaural S/N; 35dBuV for 70dB monaural S/N
IF Bandwidth
Auto (signal-adaptive) or manual selection of 110kHz, 84kHz,
60kHz, 40kHz
Audio Bandwidth
15kHz or may be manually restricted in steps down to 2kHz
De-Emphasis
75μs/50μs selectable
Reception Modes
Stereo, Auto-Blended Stereo (with front-panel stereo width display), Forced-Mono
RDS Fields Displayed
AF, CT, DI, M/S, PI, PS, PTY, PTYN, RT, RT+, TA, TP, Groups Received; RDS or RBDS protocols are selectable.
Program Audio Output(s)
Balanced Analog (XLR) Left and Right outputs are adjustable from -15dBu to +15dBu in 0.2dB steps.
Balanced Analog (XLR) Left and Right outputs are adjustable from -15dBu to +15dBu in 0.2dB steps.
AES Digital (XLR) output at 44.1kHz is adjustable from –30dBFS to 0dBFS in 0.2dB steps.
Headphone Jack (3.5mm TRS) has adjustable listening level.
Front-Panel Red-Flashing Alarms
RDS:
Alarm signals the loss of RDS data or font panel alarms; an error between the received PI code and a user-programmable PI code entry.
Low Signal: Alarm and reset trigger levels are independently adjustable relative to the RF signal level display.
Audio Loss: Alarm threshold is adjustable between 0dB and –40dB, and the alarm delay interval is adjustable between OFF and 120 seconds.
Alarm “Tallies”: Individual opencollector NPN transistor outputs to ground are programmable for logic polarity.
USB Port
The front-panel mini-USB port allows the quick uploading of firmware updates when issued.
Power Requirement
12VDC at 290mA; a universal 90 - 240 VAC inline switching power supply is included with the INOmini 673 receiver.
Mounting Options
An optional rack adapter accepts up to three INOmini modules in a 1U, 19-inch rack space. The 673 also may easily be fastened to any convenient surface with two small screws.
Size and Weight
1.6”H x 5.5”W x 5.5”D; 4 lbs. shipping weight.
