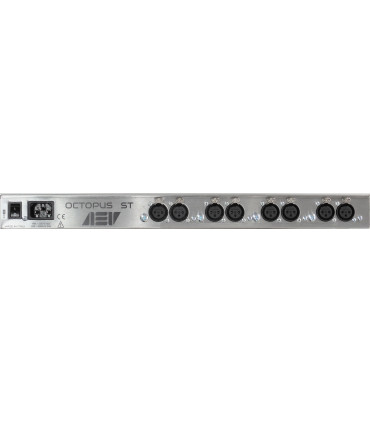

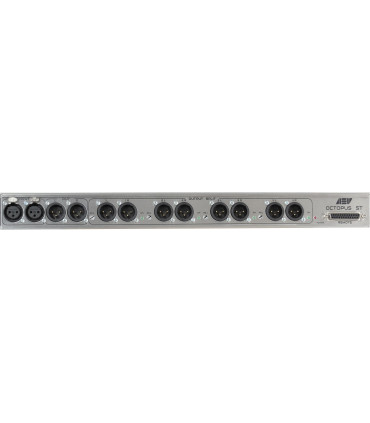

STEREO AUDIO OCTOPUS ST
STEREO AUDIO OCTOPUS ST
OCTOPUS ST is a high-quality audio distributor equipped with:
- One balanced stereo main input (MAIN)
- One balanced stereo Main Expander output that can be used
to expand the main MAIN signal)
- Four or eight adjustable balanced stereo outputs Reversible rack mounting allows for adaptable mounting depending on the assigned position within the rack.
€470.25
No tax
€495.00
-5%
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
AUDIO STEREO OCTOPUS ST
STEREO AUDIO OCTOPUS ST
- STEREO AUDIO SWITCHER
- is a high quality 1U rack-mount 19 stereo audio switcher with one Main input, four Sub inputs and four outputs.
- It has one balanced Stereo Main line input, four balanced Stereo Sub inputs, four balanced Stereo outputs and one stereo Main expander output.
- Use OCTOPUS ST SPLIT in the Studio to switch between the Main source and four different sub sources.
- You can connect several OCTOPUS ST SPLIT units in cascading mode using each unit's Main expander output.
- The gain of the outputs can be varied with a potentiometer, and an LED displays the status of each output (Main or Sub inputs).
- The AEV OCTOPUS ST SPLIT has one balanced stereo line input, five balanced stereo outputs; the XLR-3 input and outputs are electronically balanced each output is buffered individually so that a short circuit on one does not affect the others.
- AEV OCTOPUS ST SPLIT can accept external commands that are normally off or normally on, fixed or pulse; the inputs are opto-isolated and configuration can be done with its panel.
- AEV OCTOPUS ST SPLIT provides an optoisolated output control that retransmits the status of the internal audio switch.
- The status of the optocoupler output can be programmed, it can be normally on, off, fixed or pulse.
- AEV OCTOPUS ST SPLIT is equipped with a by-pass relay to guarantee the passage of the main signal in case of power failure.
- Translated with www.DeepL.com/Translator (free version)
