CONSOLE MIXER AIRMATE 12 USB
AIRMATE 12 USB
Designed to meet the exacting demands of radio production, the Airmate-12 is the ultimate choice for self-operating DJs.
With standard internal two Telephone Hybrid (POTS) and USB connection to your PC for seamless web streaming, the Airmate-12 ensures professional-grade performance every time.
Featuring the extra options like WPC (Wireless Phone Channel), AES output and suitable for many VoIP applications, the Airmate-12 offers unparalleled versatility.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
AIRMATE-12
The Airmate-12 boasts eight input channels, each equipped with high-quality balanced microphone inputs on XLR, along with two stereo line-level inputs on Cinch (RCA) connectors.
What's more, each Mic input includes an insert for signal processors, while every line-level input can easily be transformed into a phono (record player) channel with the optional stereo R.I.A.A. equalized phono pre-amp.
And now, with the ability to connect our Studio Remote unit to the Airmate-12, you can take your radio production to new heights of excellence.
Features
12 Vertical triple input modules:
Equipped with 12 vertical triple input modules for versatile audio input handling.
Balanced Mic inputs:
Includes 10 balanced mic inputs with phantom power support for professional audio capture.
PC streaming via USB:
Seamless USB connectivity for direct PC streaming and integration.
Standard telephone hybrids (POTS):
Built-in standard telephone hybrids (POTS) to manage phone-based audio inputs.
Optional VoIP and WPC channels:
Suitable for many VoIP applications and Wireless Phone Channel (WPC) integration for expanded connectivity.
ON-AIR fader start:
Features fader start functionality for ON-AIR light control.
Enhanced audio control:
3-band equalizer with Aux send/return for precise audio adjustments.
Hybrid compatibility:
Compatible with both analog and digital hybrid audio sources.
RIAA phono pre-amp option:
Optional RIAA phono pre-amp board available for vinyl inputs.
Digital AES/EBU outputs:
Optional Digital AES/EBU outputs for high-quality digital audio connections.
Comprehensive connectivity:
Extensive connectivity options with XLR, RCA, and Jack connectors for versatile interfacing.
Inputs:
Microphone inputs: 10 balanced mic inputs with +48V phantom power and insert.
Line inputs: 12 stereo line inputs.
USB connections: 2
Telephone hybrids: 2
Channel features:
Channels 9 and 10: Equipped with Mic/Line and USB interface for seamless audio transfer to and from your PC.
Channels 11 and 12: RJ-11 connectors, in addition to stereo line inputs, allowing interfacing with a POT and a Telephone appliance for direct dialing. It is also possible to include VoIP or WPC (Wireless Phone Channels) inside channels 11 and 12. Also a mix of these modules are an option. Check what will be the best for you.
Telephone hybrids:
High-quality built-in Hybrids ensure clear communication with listeners.
Direct Connection and Talkback buttons on Hybrid channels facilitate easy conversation.
Telco Send: Easily adjustable level to the caller.
Telco Gain: Easily adjustable level from the caller.
Additional features:
Fader start: Initiated from the ON switch or FADER, activating ON-AIR lights simultaneously.
Equalizer: 3-band equalizer available on channels 1-10.
Stereo Aux send: Configurable as pre or post fader.
Mic inputs: Equipped with low-cut jumpers.
Clean feed send: Available for external analog and digital Hybrids.

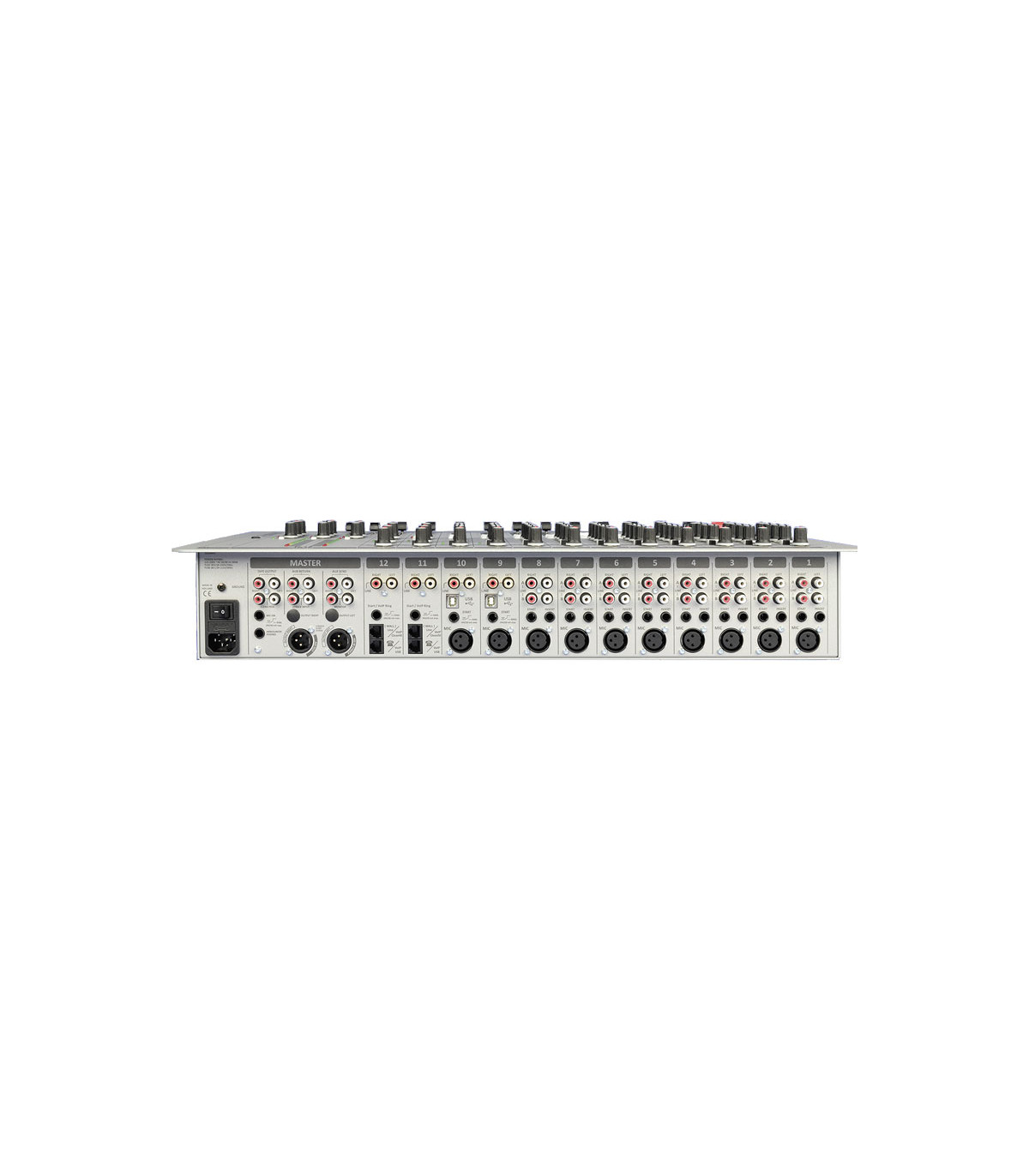

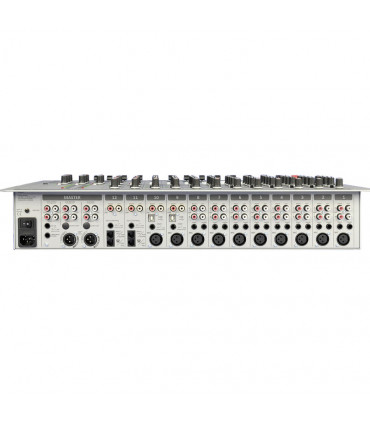

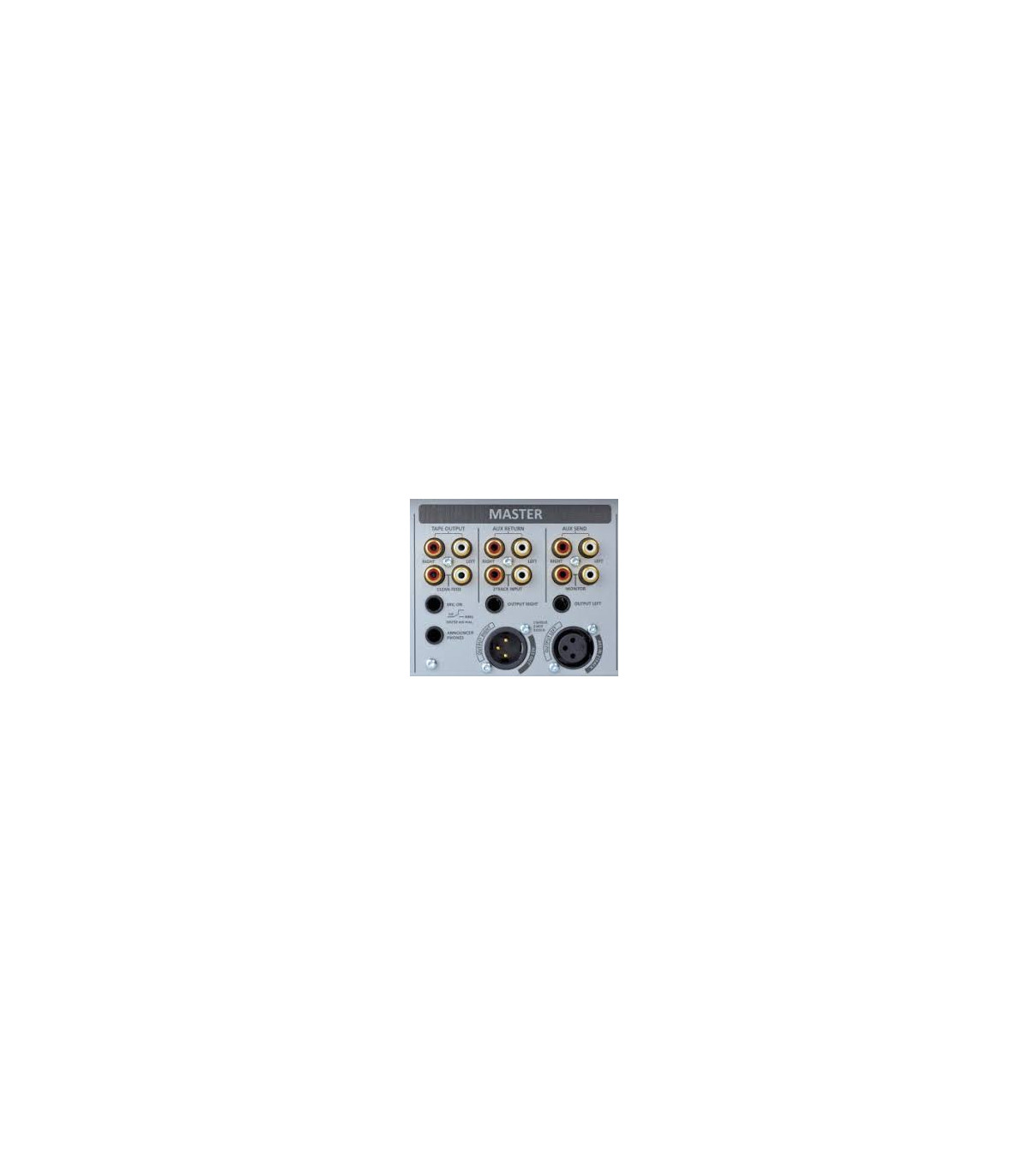

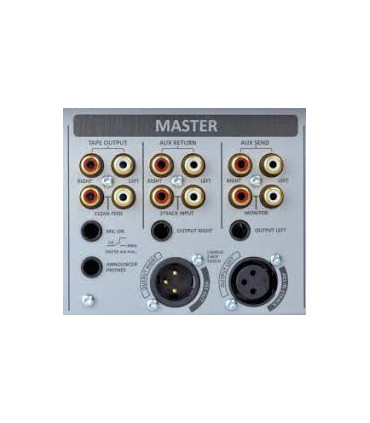

Back panel
The Airmate-12 is designed to offer unparalleled connectivity and flexibility, ensuring that you have complete control over your audio production.
USB connectivity:
The Airmate-12 features two USB connectors on the back panel, allowing direct control of USB channels from your computer. Once connected, your computer will detect the Airmate-12 as a new USB device for seamless integration.
Flexible channel options:
The Airmate-12 includes standard POTS channels and optional VoIP and WPC (Wireless Phone Channel) channels. With VoIP, the RJ11 connector is replaced by a USB connector for easy computer connection using VoIP software.
Standardized connectors:
All input/output connections use standard XLR, Cinch, and Jack connectors, ensuring compatibility with various audio equipment.
