635 INOmini Inovonics Broadcast FM|RDS SiteStreamer™ with Web Interface
635 INOmini Inovonics
635 INOmini FM|RDS SiteStreamer with Web Interface: 64MHz – 108MHz

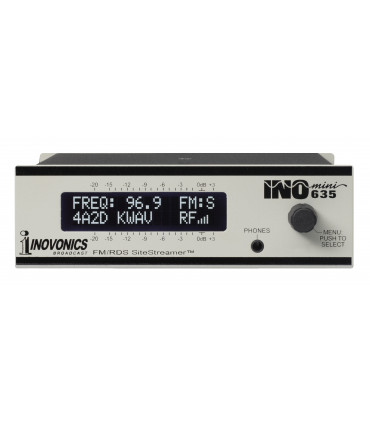

Inovonics INOmini 635 is a Web-enabled FM receiver for remote signal monitoring. It is essentially a remote-control FM radio with remote audio monitoring capabilities via the Internet. Installed at a transmitter/translator site or any remote location, it streams off-air audio or a wired audio feed back to any computer, tablet or mobile device. The browser interface enables remote tuning, displays audio levels and RDS data, and logs signal parameters. Email, SMS messaging and SNMP protocols are fully supported.
The Station Rotation feature permits monitoring of station presets by ‘round robin’ sequencing of up to 30 stations - each with its specific alarm parameters.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
635 INOmini Inovonics
Features
- Station Rotation™ - monitor all station presets by ‘round robin’ sequencing, each with its specific alarm parameters
- Tunes the Extended FM band: 64MHz to 108MHz
- Analog AUX input monitors hardwired audio feeds
- Remote monitoring at transmitter / translator sites

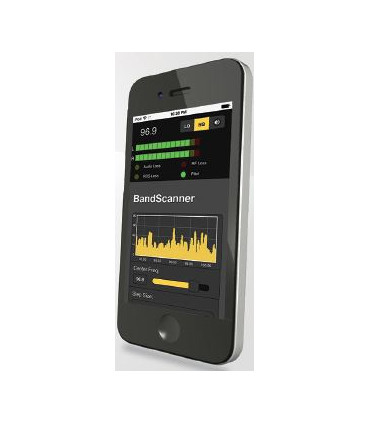

- Full dynamic browser support including audio
- Streaming through the Web interface
- Logs RSSI, Audio Loss, RDS Errors
- Measures audio levels for accurate diagnosis
- Measures audio levels for accurate diagnosis
- Easy to set up and use
- Headphone jack
Specifications
Tuning Range
Extended FM band: 64MHz to 108MHz in 100kHz steps.

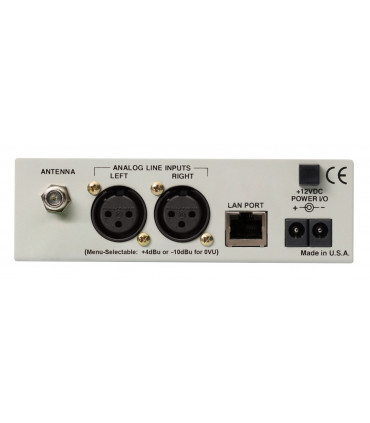

Antenna Input
75-ohm ‘F’
Receiver Sensitivity
≤10uV for 50dB monaural SNR.
Audio Frequency Response
±1dB, 30Hz–15kHz; 50μs/75μs de-emphasis.
Program Line Input
Active-balanced (XLR) left/right analog inputs; internal jumpering for +4dBu or –10dBu “zero-VU” levels; local and remote switching between off-air and line feeds.
Network Connection
LAN (RJ-45) jack accepts universal TCP/ IP connection to Local Area Network, and via router to the Internet.
Power Requirement
12VDC at 140mA (2.1mm x 5.5mm coaxial); inline switchmode power supply included.
Mounting Options
An optional rack adapter mounts one, two or three INOmini format units in a standard 19-inch, 1U rack space.
Size and Weight
1.6”H x 5.5”W x 5.5”D; 4 lbs. shipping weight.
