Audio Monitor BEL BCR A1OB
Audio Monitor BEL BCR A1OB
The BCR range of trusted monitors offers "a cost-effective option for audio rack monitoring" for use in master control rooms, transmission suites, OB vehicles or as part of fly-away systems to provide accurate signal quality assessment. Two models offer reliable monitoring of two analogue audio channels, with speakers and meters, and a third model offers four analogue audio channels.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
BCR4
This model offers reliable monitoring of up to four stereo, analogue, audio channels, with one speaker assigned to provide a mono sum of each stereo input. The front panel provides volume controls for each of the four speakers mounted on the front panel and a single power LED. The rear panel provides eight balanced, analogue, line-level inputs via female 3-pin XLR connectors and AC power connection, an IEC input with built-in fuse and adjacent power switch.
Analogue input impedance: 25k ohm balanced. Peak sound level: 100dB SPL at 0.6m. Power supply: 90-260V AC, 50/60Hz. Power consumption: 30W maximum dimensions (WxHxD): 483 x 44.3 x 200mm, 1U rack mount. Weight: 3kg.
Included accessories: User's manual, IEC (UK)BCR-A1OB power cord

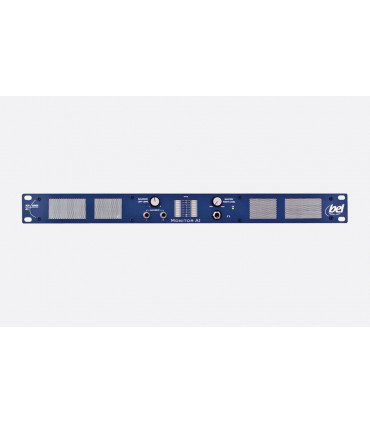

The front panel provides volume and balance controls. When configured as a dual mono monitor, the volume control will be assigned to the right channel and the balance control will act as master level control for the left channel. There is also a 6.35mm stereo headphone jack, which mutes the speakers when used. Audio measurement is via two LED bargraphs. Two phono sockets provide an auxiliary analogue input source.

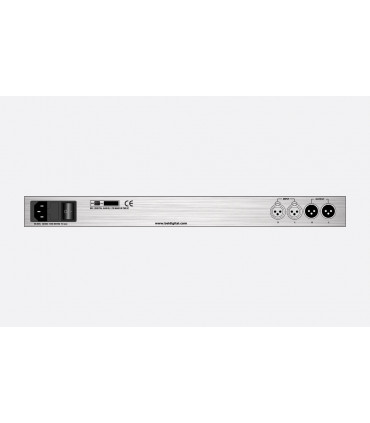

The rear panel provides two line-level analogue inputs via XLR connectors. Two XLRs provide line-level analogue audio outputs, which follow the audio output of the left and right speakers. The IEC power input with built-in fuse has an adjacent power switch.
Analogue input impedance: 25k ohm. Auxiliary input impedance: 25k ohm. Analogue output impedance: 50 ohm. Peak sound level: 100dB SPL, at 0.6m. Frequency response: 20Hz to 20kHz +/-1dB. Power supply: 90-260V AC, 50/60Hz. Power consumption: 30W maximum. Dimensions (WxHxD): 483 x 44.3 x 200mm. Weight: 4kg.
Accessories included: User's manual, IEC power cord (UK)
BCR-A4-4OB
This offers many of the same functionality as the BCR-A1OB, but has the added functionality of both digital AES and analogue support. The front panel provides a rotary switch that selects between the available inputs. Four LEDs indicate the presence of valid and locked AES sources. Like the BCR-A 1OB there is also a 6.35mm stereo headphone jack, which mutes the speakers when used. Audio measurement is made via two LED bargraphs.
The rear panel provides eight balanced, analogue, line-level inputs (25-way D-sub) and four AES3id inputs (BNC) Two XLRs provide analogue, line-level audio outputs that follow the audio output to the left and right of the speakers. The IEC power input with built-in fuse has an adjacent power switch.
Analogue input impedance: 25k ohm. Digital input impedance: 75 ohm, unbalanced. Analogue output impedance: 50 ohm. Peak sound level: 100dB SPL, at 0.6m. Frequency response: 20Hz to 20kHz +/-1dB. Power supply: 90-260V AC, 50/60Hz. Power consumption: 30W maximum. Dimensions (WxHxD): 483 x 44.3 x 200mm. Weight: 4kg.
