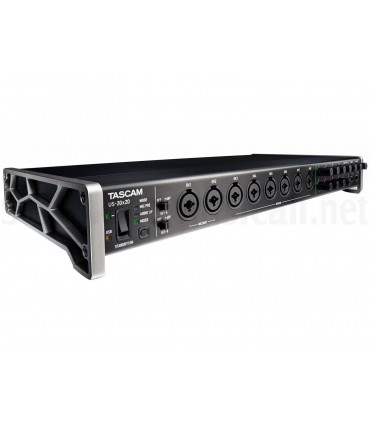

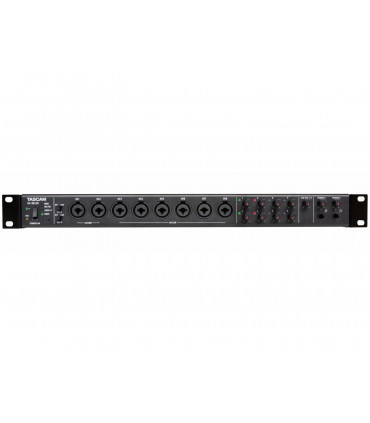

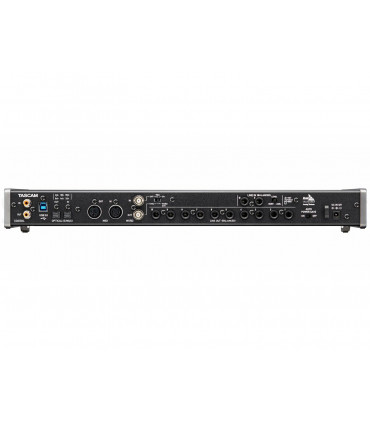

TASCAM Us 20x20 Audio Interface


Continuing its tradition and passion for audio, the US-20x20 "Celesonic" is the flagship of Tascam's line of interfaces. Designed for use in professional recording facilities or Project Studio, this audio interface supports 192kHz and uses USB 3.0, a state-of-the-art transmission standard.

€997.50 No tax €1,050.00
Size chart
Women's clothing size
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

TASCAM Us 20x20 Interfaccia Audio

TASCAM Us 20x20

With additional features, such as Mic Preamp and Mixer modes, it becomes a very versatile tool - as well as an interface for multi-channel recording. Mic preamps are crucial for maximum audio quality. The eight Tascam Ultra-HDDA mic preamps have an equivalent input noise of -125dB (EIN). In addition, 20dB of headroom on the microphone and line inputs make it easy to handle high SPL transients caused by percussion and instruments. Using a high-performance Blackfin processor, the US-20x20 offers an advanced DSP mixer, including EQ, compression, and reverb for each channel. The processor excels not only on dynamics and effects, but also enables multi-channel transmission via USB3.0 for the studio. Additional significant features allow for a seamless workflow of the professional engineer. Switching mode provides the ability to use the US-20x20 as a standalone microphone preamplifier, audio interface, or as a mixer for sound reinforcement applications. Complete connectivity to various types of audio equipment is achieved by using the analog inputs and outputs, digital inputs and outputs via coaxial and optical connectors, MIDI connectors, and BNC word clock. The attractive styling and angled industrial design of the US-20x20 makes desktop recording a breeze. A rack mount adapter is also included.

Key features

Ultra-HDDA (High Definition Architecture Discrete) microphone preamplifiers with -125dBu EIN

8 Ultra-HDDA microphone preamplifiers with XLR / TRS connectors and two TRS inputs

Switching between 3 modes of Interface / Microphone Preamp / Mixer

Recording up to 192kHz / 24-bit

Windows and Mac support

USB 3.0 / 2.0 PC connection (USB3.0 requires Windows 10)

Connect with iPad and other iOS devices

+48V phantom power for all inputs

High impedance inputs

Input level with 56dB range for dynamic microphone use

Durable metal body for long life

Angled design offers excellent desktop usability

2 standard TRS headphone jacks with 70mW + 70mW power output

Separate controls for line and headphone output volumes

MIDI input and output

Low-latency monitoring with integrated DSP mixer

DSP mixer with 4-band EQ and compression on each input channel (can be used in interface/mixer mode)

Reverb ideal for monitoring in interface mode or PA/SR in mixer mode

Patch bay for freely assigning outputs (can be used in Interface/Mixer mode)

Scenes can store DSP mixer settings (up to 10+1 scenes can be stored and named)

10 TRS analog outputs

Coaxial digital S/PDIF input/output connectors

TOS LINK optical multi-channel digital input/output connectors (SMUX2 and SMUX4 support)

BNC word clock input/output connectors

Native USB2.0 support

Works with leading DAW software (SONAR, Pro Tools, Cubase, Live, Studio One, GarageBand)

RoHS certified

Rack-mount adapter included

Dedicated power supply included

USB 2.0 and USB3.0 cables included

Dimensions: 445 x H59 x222mm

Weight: 2.8kg

Product Details
TASCAM Us 20x20 Interfaccia Audio
