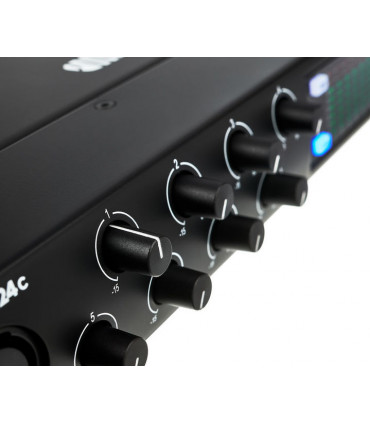

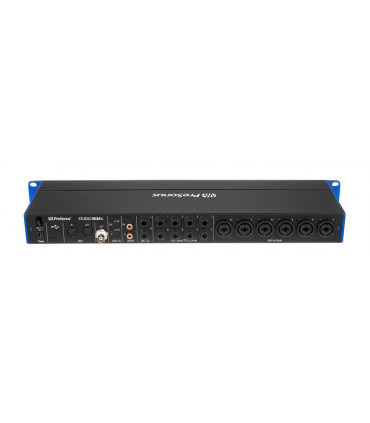

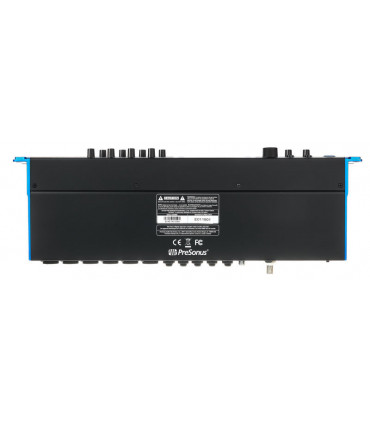

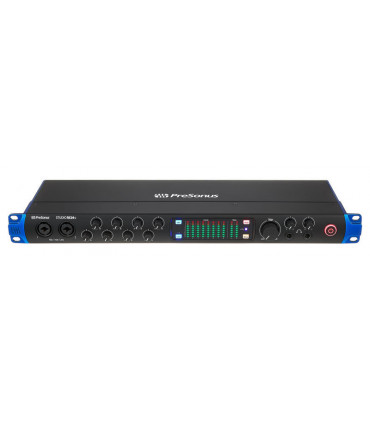

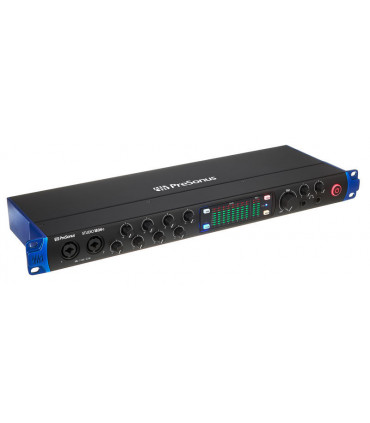

Presonus Studio 1824c Audio Interface
STUDIO 1824c
18 IN / 18 OUT USB-C AUDIO INTERFACE WITH 8 XMAX PREAMPS
The Studio 1824c 192kHz USB-C audio interface is ideal for producers interested in recording full bands, including multi-channel drums. It records up to 18 simultaneous inputs and features 8 XMAX Class A mic preamps and MIDI I/O. Its 20 outputs offer flexible routing with zero-latency DSP-based monitor mixing and control-room integration with Studio One Artist music production software and UC Surface software.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
STUDIO 1824c
Features
USB-C 18x18 audio interface
24 bit / 192 kHz
2 combo Mic/Line/Inst inputs on front: XLR/jack
6 combo Mic / Line inputs on the back: XLR / jack
+48 V phantom power supply
8 XMAX L microphone preamplifiers.
Optical ADAT input: 8 channels / 48 kHz, 4 channels / 96 kHz
2 TRS jack outputs with level control
Mono and Mute buttons
8 TRS line outputs
DC-coupled line outputs let you send CV / Gate signals from your DAW
2 stereo headphone outputs with independent mixes
LED indicator on all analog inputs and main outputs
S/PDIF and MIDI I/O
BNC word clock output
Flexible routing
Latency-free monitoring
Power supply via external power adapter (included)
Compatible with Windows 7, Mac OSX 10.11 or later versions
Size: 19" / 1 U
Includes USB-C to USB-C and USB-C to USB-A cable, as well as Presonus Studio One Artist software + Studio Magic plug-in suite (Ableton - Live Lite, Arturia - Analog Lab Lite 3 and more)
More information
Recording / Playback Channels 18x18
Number of Mic Inputs 8
Number of Line Inputs 8
Number of Instrument Inputs 2
Number of Line Outs 10
Headphone Outs 2
Phantom power Yes
Number of S/PDIF Connectors 1
Number of ADAT Connectors 1
Number of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface Yes
Word Clock 1xOut
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version USB C
Width in mm 483 mm
Depth in mm 140 mm
Height in mm 44 mm
