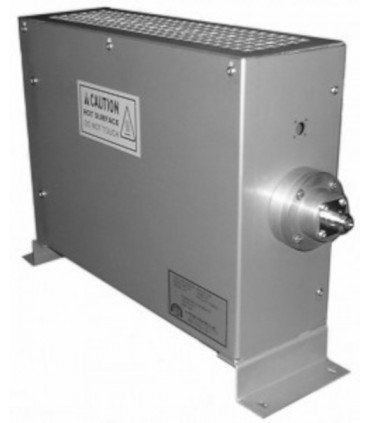

AIR-COOLED DUMMY LOADS MODEL 6401L-ALTRONIC

 MODEL 6401L-ALTRONIC

The 6400 series air dielectric coaxial loads offer the same high performance as the 6700 series in a smaller package. The 6400 series is designed to operate using static or forced air while exhibiting stable RF characteristics. The small, compact oil-free design is a welcome advantage in a crowded transmission area. Applications range from mounting on top of the transmitter to placing them inside the cabinet. Model 640105 is an excellent load for VHF transmitters with separate inputs for the acoustic and visual ports.

€0.00 No tax
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
CARICHI RAFFREDDAMENTO MODELLO 6401L ALTRONIC
Brand:
Description

Model 6401L air-cooled

Rated power: 1kW continuous duty

Impedance: 50 ohms nominal

Frequency range: DC to 220 MHz

Maximum VSWR: 1.15: 1 to 220 MHz

Input Connectors: N - Female (others available)

Nominal dimensions (excluding connection): 4 1/2" x 17 5/8" x 10 1/2"

(11.4 cm x 44.8 cm x 26.7 cm)

Nominal Weight: 8 lbs. (3.6 kg)

Finish: Beige Splatter

Specific frequencies tuned better than 1.1

Product Details
CARICHI RAFFREDDAMENTO MODELLO 6401L ALTRONIC
