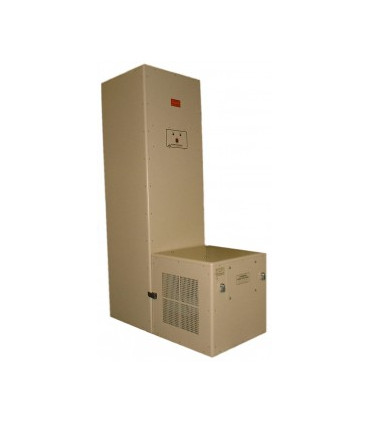

MODEL 6775 Forced Air Cooled

Omegaline Model 6775 Air-Cooled Coaxial RF Load Resistor

The 6775 has outstanding air-cooled terminations for 50-ohm coaxial transmission line systems that exhibit excellent and stable RF characteristics throughout their entire operating power range. The rugged, precision design provides reliability, serviceability, safety, convenience and cost-effectiveness that are well suited to modern RF applications.

€0.00 No tax
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
MODELLO 6775 Raffreddato ad Aria Forzata-ALTRONIC RESEARCH
Brand:
Description

MODEL 6775 Forced Air Cooled

Power Rating: 75kW continuous duty

Impedance: 50 ohms nominal

Frequency Range: DC to Freq. above 110 MHz – consult factory

VSWR: 1.15:1 to 110 MHz

Input Connectors: 3 1/8″ EIA Flange or 3 1/8″ Unflanged (others available)

AC Power Required: 230 VAC, 60 Hz12A,  (50 Hz available)

Nominal Dimensions (Including Conn.): 24″ x 48″ x 84″ H (61cm x 1.22m x 2.13m)

Nominal Weight: 360 lbs. (163 kg)

Finish: Beige Splatter
