These dipole antennas are rugged broadband aerials especially designed for arrays composed of several elements.

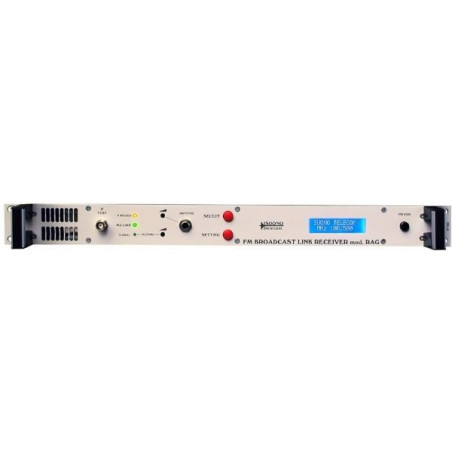

Ralay Aural RAG-FM-SUONO TELECOM Receiver
Ralay Aural RAG-FM
The RAG-FM AURAL RALAY RECEIVER offers state-of-the-art performance for FM reception quality.
Transport high quality audio stereo and video signals from studio to transmission sites. Big selection of frequencies and power. Long distances coverage.
FREQUENCY RANGE: 87.5÷108.0 MHz
(66÷88MHz upon request)
€1,520.00
No tax
€1,600.00
-5%
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
Ricevitore Ralay Aural RAG-FM-SUONO TELECOM
Brand:
Ralay Aural RAG-FM
Technical Facts:
FREQUENCY RANGE 87.5 ÷ 108MHz
CHANNEL SETTING By two pushbuttons - with password
TUNING STEP 10KHz
ANTENNA INPUT LEVEL from - 80dBm to 0dBm with no overload
ANTENNA CONNECTOR N-F 50 OHM
IMAGE REJECTION > 80dB
IF REJECTION > 90dB
FREQUENCY METER High visibility LCD Digital Display
DEVIATION INDICATION High visibility LCD Digital Display
CARRIER LEVEL METERING Showing dBμV
FREQUENCY ACCURACY ± 2,5 ppm
IF BANDWIDTH 280 KHz ± 5%
SIGNAL to NOISE RATIO 74dB @ 400Hz with 50μS
HARMONIC DISTORTION < 0.2%
FREQUENCY RESPONSE ± 0.05dB 30Hz to 60KHzreceiver-ralay-
STEREO CROSSTALK 40dB 100Hz ÷ 10KHz (typ. 45dB @1KHz)
MPX OUTPUT CONNECTOR BNC-F 2,2V PeP 30 OHM
MUTING Adjustable from -80dBm to -30dBm
MONITORING With 6,3mm Jack-earphone connector level adjusting
POWERING AC 110÷240V
DIMENSIONS 1HE rack 19" 38cm (D)
WEIGHT 3,2 Kg
Related products
€4,000.00

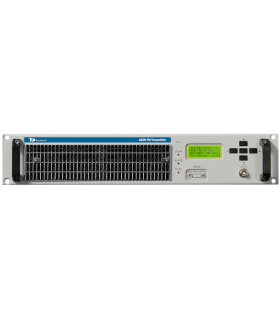

AXON 1000W STEREO
