166XS DBX Audio Processor

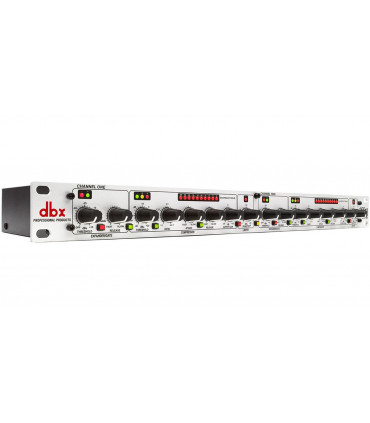

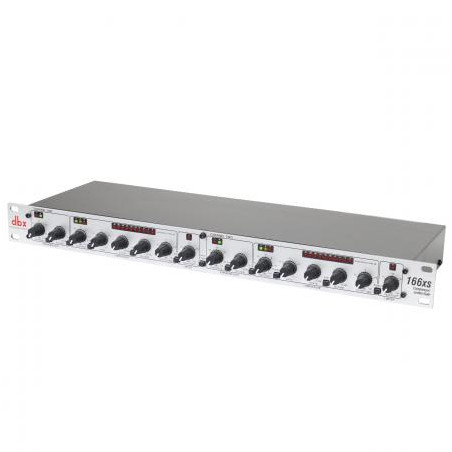

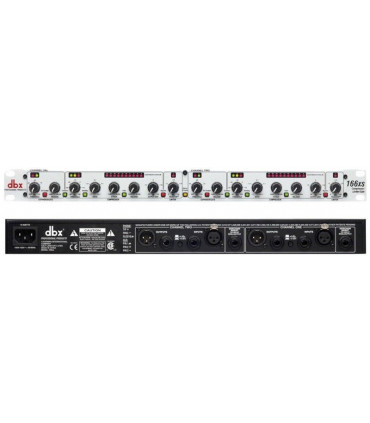

DBX 166XS Audio Processor
Compressor / limiter / gate capable of high dynamic control offered crystal clear sound.
Thanks to the compression chain, and patented Overeasy and AutoDynamic technology, you will be able to adjust dynamic levels, add sustain to guitars or body to percussion, perfectly controlled peak levels, thanks to PeakStopchi® technology not event connected in cascade.
Stereo or dual-mono operating modes, quality XLR connectors, gain adjustment and backlit switches round out the 166xs features.
Compression Expander / Gate Limiter PeakStop® threshold range from 0 dBu to +20 dBu System
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
DBX 166XS Audio Processor
FEATURES
inputs
- Connectors: 1/4 "TRS, XLR female (hot pin 2)
- Type: balanced / unbalanced, RF compliant
- Impedance:> 50kOhm balanced,> 25kOhm unbalanced
- Maximum level:> + 24dBu
Outputs
- Connectors: 1/4 "TRS, XLR female (hot pin 2)
- Type: balanced / unbalanced, RF described
- Impedance: 120 Ohm balanced,> 60 Ohm unbalanced
- Max level:> + 21dBu balanced / unbalanced (> + 18dBm at 600Ohm)
- SideChain
- Connections: 1/4 "TRS headphones, Normalized
- Impedance: Tip> 10kOhm (Input), Ring 2kOhm (Output)
- Max level ::> + 20dBu (tip / input),> + 20dBu (ring / output)
- compression
- Threshold range: from -40 dBu to + 20 dBu
- Mode selector: OverEasy® or hard knee
- Ratio: variable; 1: 1 to infinity: 1; 60 dB max
- Time act: variable depending on the program; From 3ms to 340ms for 15 dB of gain.
- Release time: variable depending on the program; 200dB / Sec at 3dB / Sec
- Expander / Gate
- Threshold range: OFF at + 15dBu
- Expansion ratio: 10: 1
- Maximum depth:> 60 dB
- Attack time: <500 µSec
- Limit PeakStop®
- Threshold range from 0 dBu to + 20 dBu
System
- Frequency response: 20Hz - 20kHz; + 0 / -0.5 dB
- Noise: <-90dBu, from 22Hz to 22kHz
- THD + N: typically <0.04%
- IMD SMPTE: <0.08% @ + 10dBu (15dB gain reduction)
- Dynamic Range:> 115 dB,
- Crosstalk <-80dB, from 20Hz to 20kHz
- CMRR:> 40 dB, typically> 55 dB at 1 kHz
- Stereo coupling: True RMS Power Summing
Power supply Voltage
- 100 V AC at 50 / 60Hz;
- 120 V AC at 60 Hz;
- 230 V AC at 50/60 Hz
Maximum consumption: 15 W.
Operating temperature: from 0 ° C to 45 ° C
Dimensions (WxHxD): 48.26 x 17.15 x 4.45
Weight: 2.29 kg
