PL-S300D - Panel LED Swit
PL-S300D - Swit

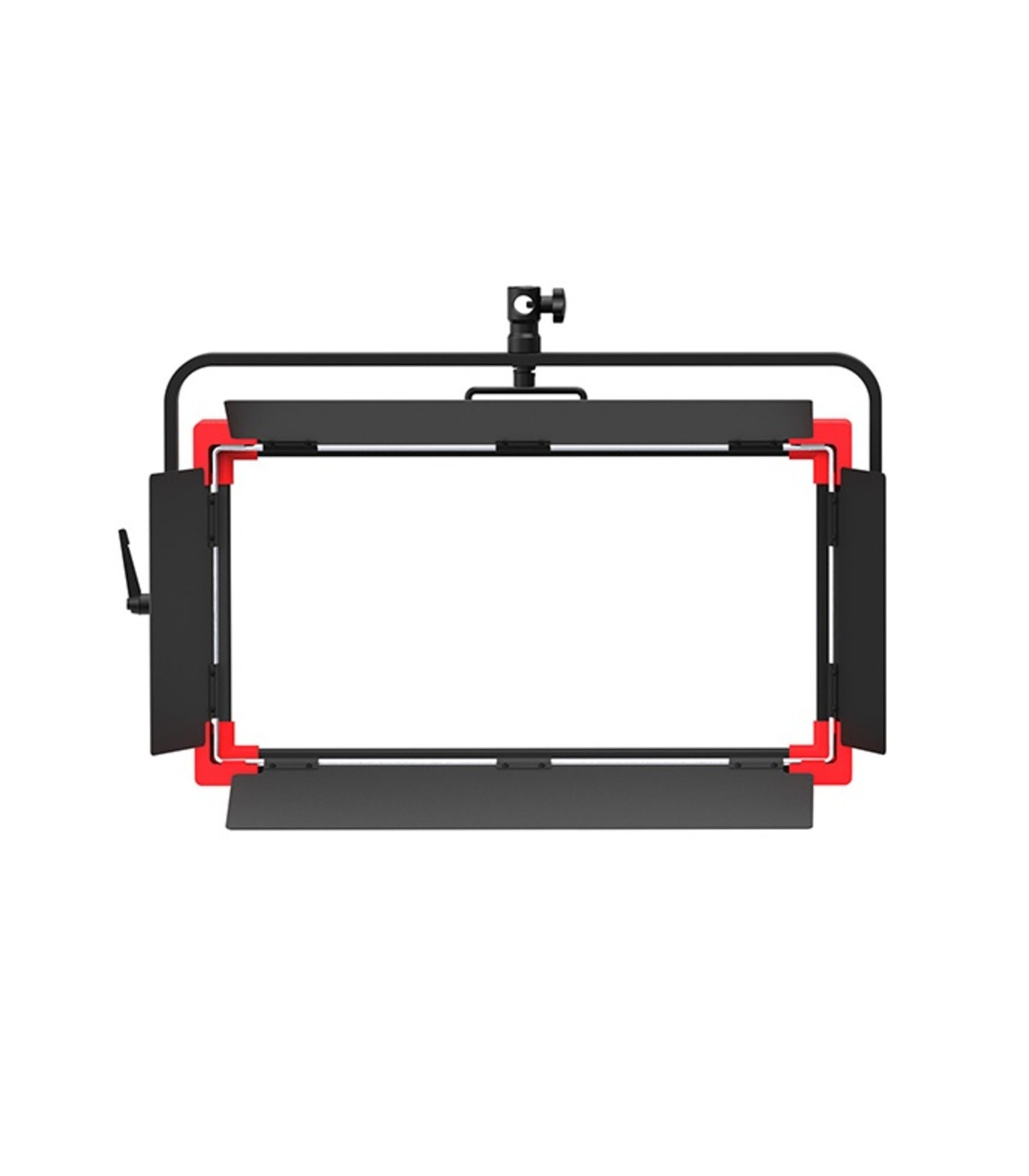

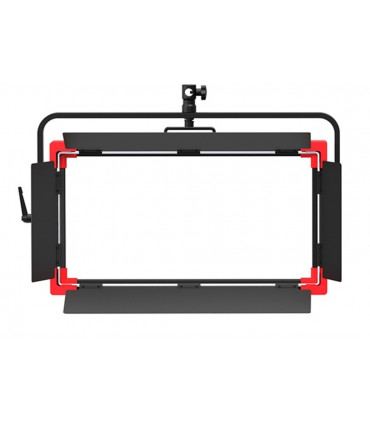

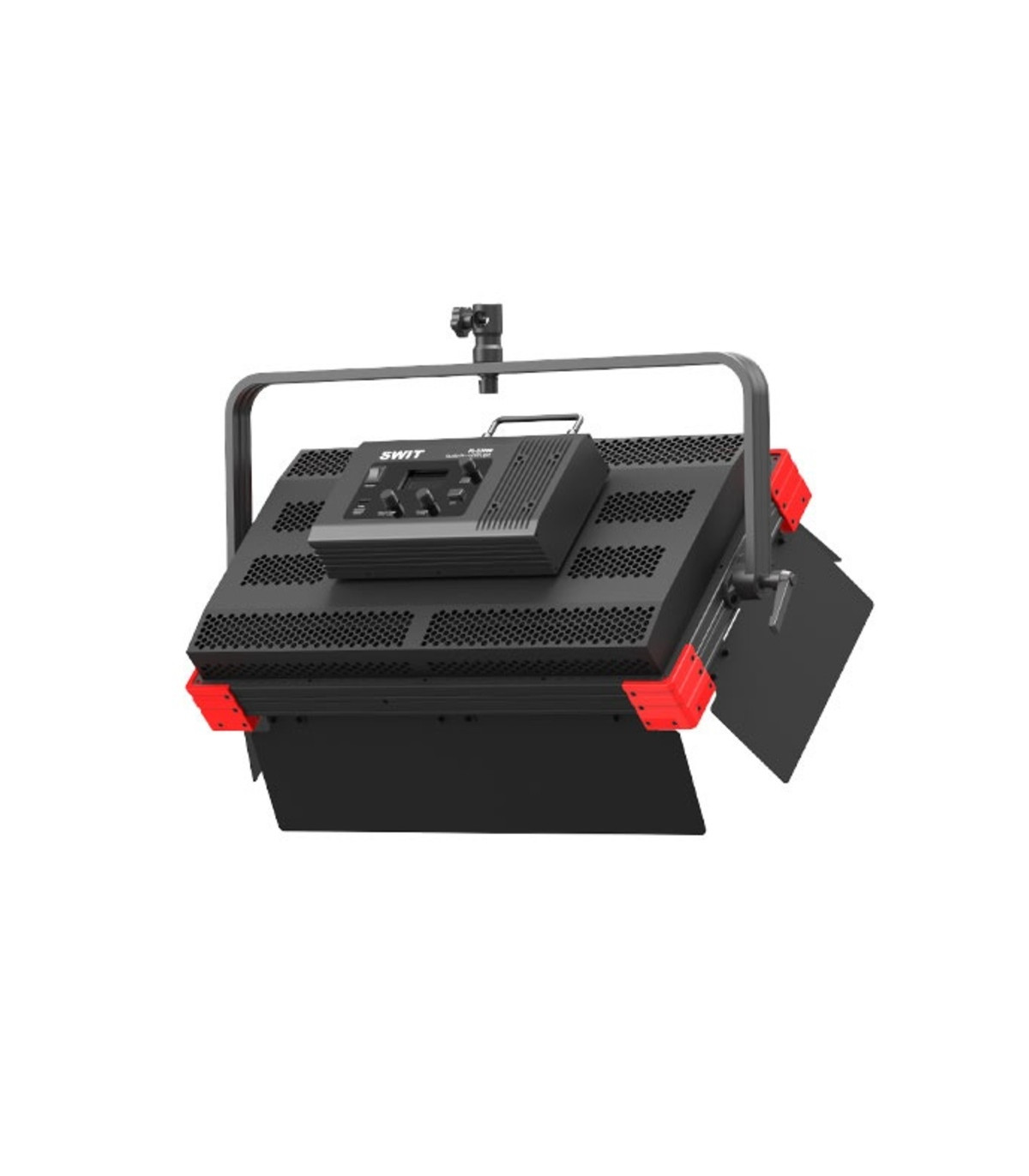

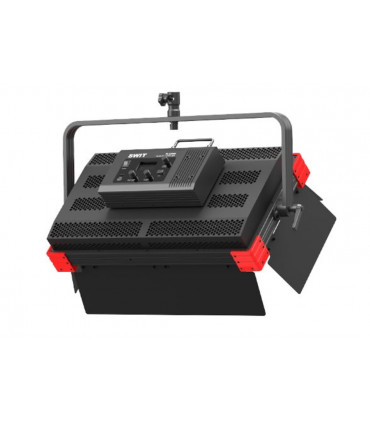

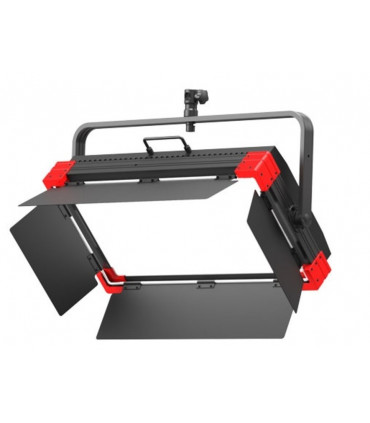

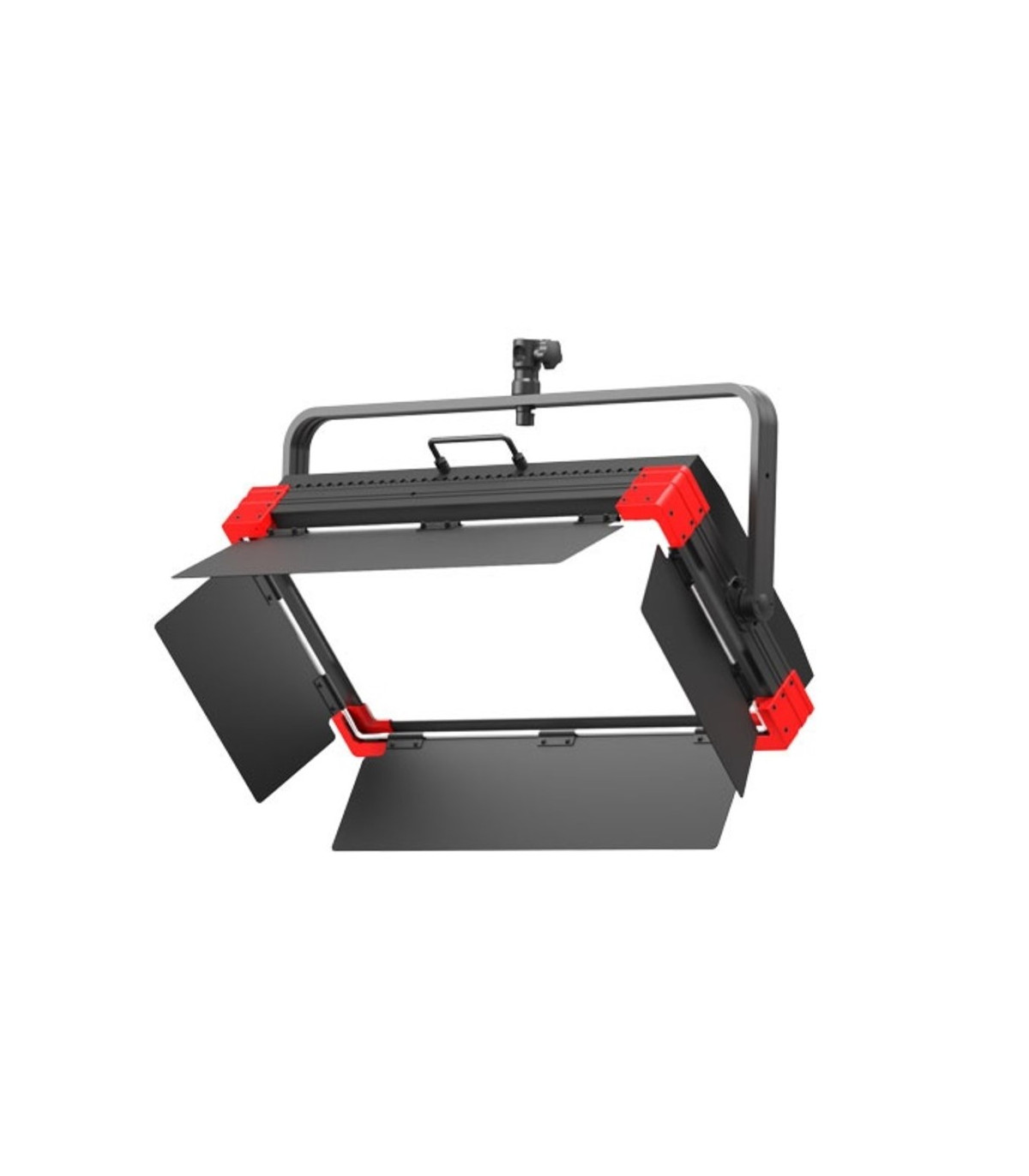

Panel LED SMD bicolor de 300 W para estudio
El PL-S300D es un panel LED SMD bicolor 2:1 de 300 W. Proporciona una luz suave, 10 000 lux a 1 m de altura con alta intensidad y un amplio ángulo de haz de 64° a media altura, ideal para grandes estudios de televisión, platós de cine e iluminación de escenarios para eventos.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
PL-S300D - Panel LED Swit
Swit 300W Bi-Color Studio SMD LED Panel, 2700K-6500K, 10,000 Lux @ 1 m, CRI 96, TLCI 99, SSI (D55) 75
- 1200 ultra-bright, long-lasting SMD LEDs
- 2x1' (61x30.5 cm) dimensions, 300W, 10,000 Lux @ 1 m ultra-bright
- No fan, no noise
- Linear, logarithmic, exponential, S dimming curves
- 2700K-6500K continuously adjustable
- Color rendering index CRI 96, TLCI 99, SSI (D55) 75
- Color and dimming controlled by DMX512
- Color LCD display and dimming value
- PowerCON True1 AC loop input and output
- 3-pin DC 48V XLR input
- Power 4-door metal yoke and bracket
- Optional honeycomb/softbox/pole-operated yoke
10,000 Lux at 1 m high brightness and soft
The 300W soft light produces a high illumination of 10,000 Lux at 1 m, half-height 63°, used for spotlights, main lights, and background lights in large-scale studios, conference rooms, etc.
Continuously dimmable 2700K-6500K
PL-S300D consists of 300W 2700K LEDs and 300W 6500K LEDs and can be continuously dimmed between 2700K and 6500K, producing 300W of power at any color temperature.
No Fan, No Noise
With SWIT's exclusive heat dissipation design, this high-power studio light uses a passive cooling structure. It can operate at full power without the need for fans, ensuring zero noise in the studio environment.
Accurate Color Rendering Index (CRI 96, TLCI 99, SSI(D55) 75)
These high color rendering indices ensure that objects illuminated by the light retain their true colors, both to the human eye and through camera lenses.
Dimming Curve Selection
The PL-S300H offers four dimming curves: linear, exponential, logarithmic, and S-curve, allowing for precise and smooth dimming control.
DMX, AC/DC Interfaces
The PL-S300D provides 5-pin XLR DMX512 input and output and supports 5V USB-A output to power the wireless DMX receiver. The light features PowerCON True1 AC loop input and output for serial connection in studio projects and also supports a 3-pin XLR DC48V power input for field applications.

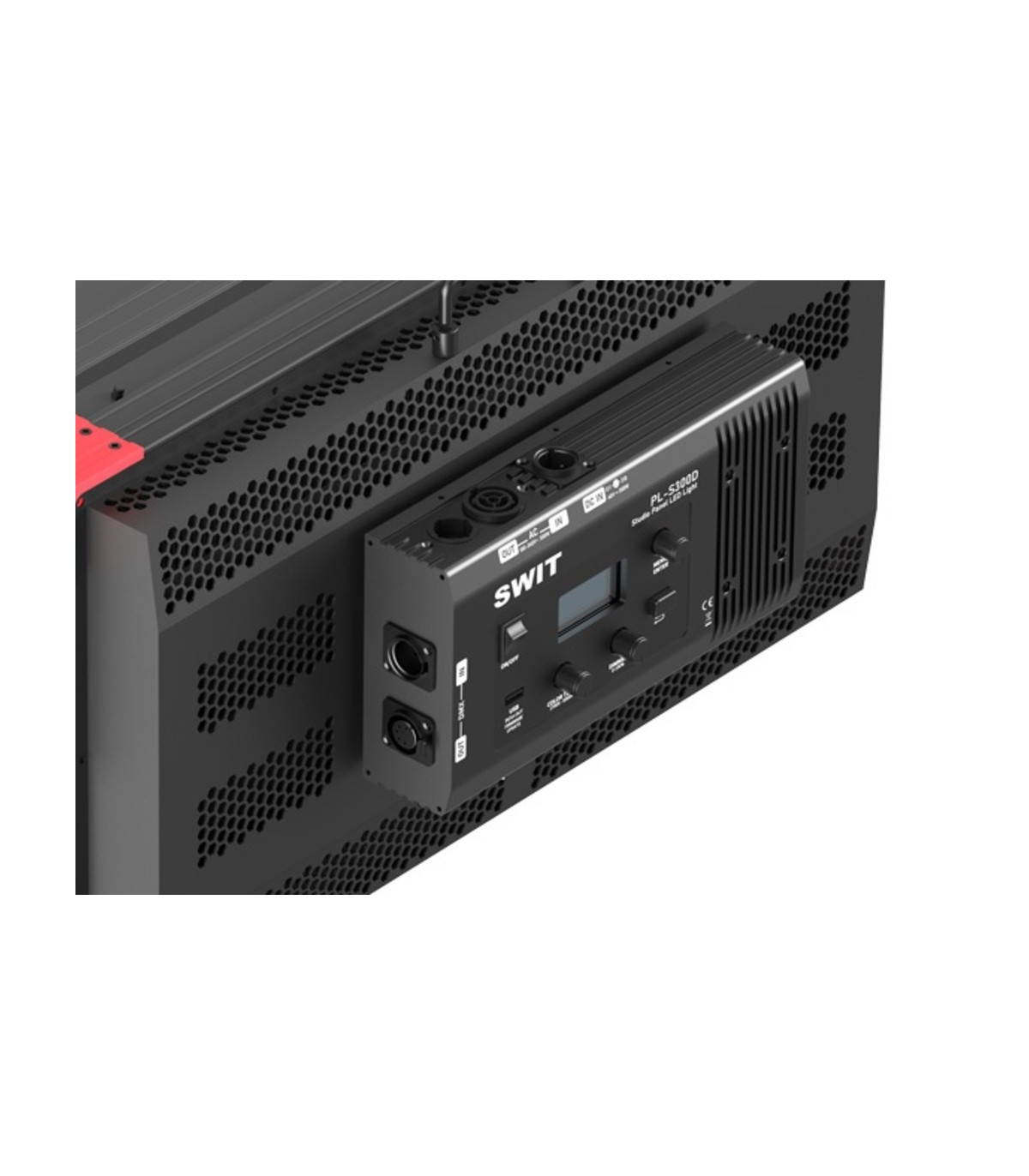

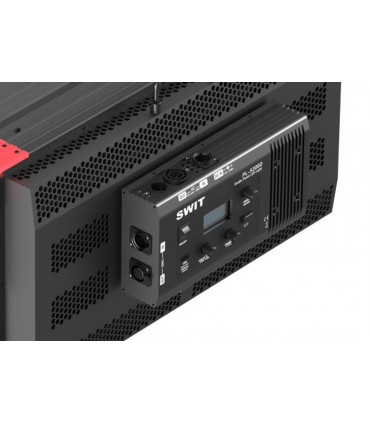

LCD Display and Menu Operation
Menu access allows users to separately set DMX addresses for dimming and color temperature, select and configure lighting effects, choose dimming curves, and supports system reset, USB firmware updates, and more.
